Hand-held pulse oximeter 6MWT

medicalfor hospitalcomputer-based

Overview

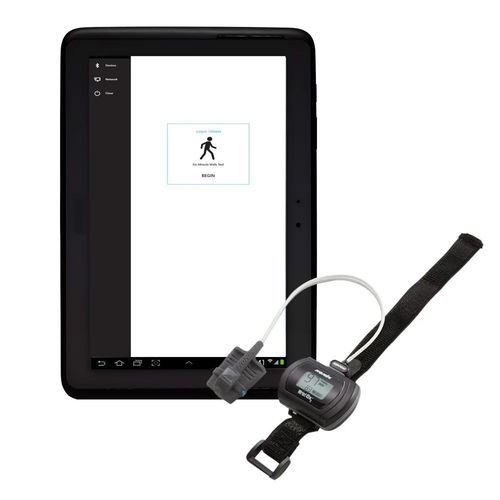

The Spirotrac Pulse Oximetry Module is a 6-minute walk test (6MWT) solution comprising a tablet running the 6MWT protocol, an SpO2 monitor and a distance‑marking kit. It captures 6MWT endpoints including nadir SpO2 and 6-minute walk distance, while guiding technicians through a scripted protocol aligned with current standards. The endpoint integrates into Spirotrac software for subject management and device data aggregation.

Benefits

• Single system for multiple respiratory endpoints, reducing the need for separate devices and logins.
• Guided test workflow for technicians to ensure protocol consistency.
• Tablet receives SpO2 data directly from the subject‑worn monitor; optional connection to the Compact Medical Workstation enables clinic‑level data transmission to Vitalograph.
• Available in multiple languages to support multinational studies and clinical settings.

Capabilities

• Nadir SpO2
• Borg Scale (perceived exertion)
• MMMR
• BODE index
• Distance walked — 6MWD (lap length configurable)
• Blood pressure (BP)
• Heart rate

Technical specifications

• Solution components: tablet with 6MWT protocol, SpO2 monitor, distance‑marking kit.
• Primary data captured: nadir SpO2, Borg Scale, MMMR, BODE, 6MWD (configurable lap length), BP, heart rate.
• Product name (module): Spirotrac Pulse Oximetry Module.
• Model number: 7000.
• Standards / compliance: EU Medical Devices Directive 93/42/EEC (as amended), ISO 13485:2003, FDA 21 CFR 820.
• Integration: endpoint incorporated in Spirotrac software for subject management; tablet can connect to Compact Medical Workstation to transmit data to Vitalograph.
• Languages: available in multiple languages.
