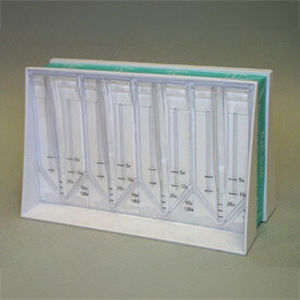

Laboratory concentrator BJP 5sampleproteinbenchtop
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory, sample, protein
- Other characteristics
- benchtop
Description
Overview
The BJP 5 benchtop static concentrator enables concentration of laboratory samples up to 5 ml without requiring a centrifuge. The dead‑stop reservoir design provides maximum concentrate recovery and permits withdrawal of samples without glass Pasteur pipettes.
Key features
Applications
Performance (time to concentrate at 20°C and solute recovery)
BSA 1.0 mg/ml (66 kDa) — 7,500 MWCO PES: 10×: ~30 min, recovery ~92% | 50×: ~41 min, recovery ~88%
IgG 0.25 mg/ml (160 kDa) — 7,500 MWCO PES: 10×: ~35 min, recovery ~75% | 50×: ~55 min, recovery ~65%
Ordering / Pack options (examples)
7,500 MWCO, PES membrane, 30 tests/pack — Price: $275.00
7,500 MWCO, PES membrane, 40 tests/pack — Price: $375.00
7,500 MWCO, PES membrane, 100 tests/pack — Price: $825.00
Pack sizes 30 and 100 contain individual units; pack size 40 contains 8 test‑block units. Individual units must be used with an acrylic stand (sold separately).
Accessories (selected)
Specifications
The BJP 5 benchtop static concentrator enables concentration of laboratory samples up to 5 ml without requiring a centrifuge. The dead‑stop reservoir design provides maximum concentrate recovery and permits withdrawal of samples without glass Pasteur pipettes.
Key features
- Starting volume up to 5 ml
- Concentration factors up to 100×
- Dead‑stop reservoir for maximum recovery (dead‑stop volume: 50 µl)
- Operates without centrifuge or additional equipment
- Reservoir material: styrene‑acrylonitrile (SAN)
- Membrane: polyethersulfone (PES), 7,500 MWCO
Applications
- Concentration of biological samples and dilute protein solutions
- Concentration and partial purification of antibodies
Performance (time to concentrate at 20°C and solute recovery)
BSA 1.0 mg/ml (66 kDa) — 7,500 MWCO PES: 10×: ~30 min, recovery ~92% | 50×: ~41 min, recovery ~88%
IgG 0.25 mg/ml (160 kDa) — 7,500 MWCO PES: 10×: ~35 min, recovery ~75% | 50×: ~55 min, recovery ~65%
Ordering / Pack options (examples)
7,500 MWCO, PES membrane, 30 tests/pack — Price: $275.00
7,500 MWCO, PES membrane, 40 tests/pack — Price: $375.00
7,500 MWCO, PES membrane, 100 tests/pack — Price: $825.00
Pack sizes 30 and 100 contain individual units; pack size 40 contains 8 test‑block units. Individual units must be used with an acrylic stand (sold separately).
Accessories (selected)
- Acrylic Stand for 4 BJP Units (SKU: BJPA-AS) — Price: $0.00
- Recovery Pipettes for BJP, 30 per pack (SKU: BJPA-P30) — Price: $14.00
- Recovery Pipettes for BJP, 40 per pack (SKU: BJPA-P40) — Price: $15.00
- Recovery Pipettes for BJP, 100 per pack (SKU: BJPA-P100) — Price: $29.00
- Recovery Pipettes for BJP, 250 per pack (SKU: BJPA-P250) — Price: $42.00
- Expansion Reservoir for BJP-20 (SKU: BJPA-ER20) — Price: $58.00
Specifications
- Model family: BJP 5
- Per‑sample capacity: 5 ml
- Membrane pore size: 7,500 MWCO (PES)
- Active membrane area: 25 cm²
- Dead‑stop volume: 50 µl
- Reservoir material: styrene‑acrylonitrile (SAN)
- Membrane material: polyethersulfone (PES)
- Example dimensions: length 147 mm (BJP‑5/40 variant) or 38 mm (other); width 70 mm or 20 mm; height 94 mm or 100 mm
- Typical performance examples: BSA 1.0 mg/ml — 10×: ~30 min, ~92% recovery; IgG 0.25 mg/ml — 10×: ~35 min, ~75% recovery
