Medical trolley APOLLO

hospitaltransportstorage

Brief description

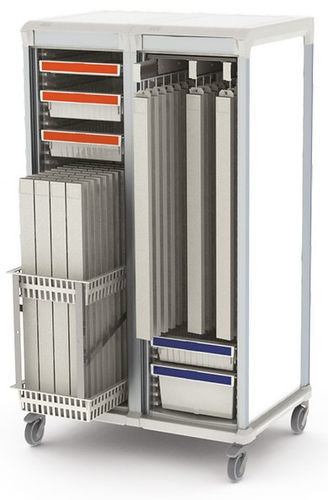

Modular storage trolley system APOLLO, compatible with ISO 60x40 modules, designed for handling containers/trays on castors. Structure designed to combine different door types, depths and heights. Main surfaces in polymeric materials resistant to humidity. Internal compartment easy to clean with a self-draining panel.

Variants / Types

• Roll-up door
• Glass door
• Solid door (HPL)
• Open frame (no door)

Main functional features

• Modularity: configurable combinations of door type, depth and height.
• ISO compatibility: compatible with ISO 60x40 modules (ISO 6040).
• Moisture resistance: primary surfaces in polymers (top panel ABS, bottom panel PP, side panels PVC).
• Cleaning: internal compartment easy to clean thanks to a self-draining panel; roll-up door removable without tools for deep cleaning.
• Transport: reinforced frame and high-quality castors; 125 mm rubber swivel castors with integrated 360° bumper; typically 2 braked and 2 unbraked castors.
• Safety & ergonomics: mid-height handle for ergonomic opening; multiple lock options (code, key, electronic) with central or high mounting and remote programming via Wi‑Fi where available.

Design and accessories

• Removable, washable top panel; on solid-door versions the top panel functions as a work surface with anti-fall upstand.
• Glass doors: 4 mm tempered glass for visibility and content control; perimeter sealing to limit dust ingress.
• Roll-up door: counterbalanced system for smooth operation; roll-up removable without tools.
• Accessories: DIN rail for accessories, option to fit plastic wheels on side panels to ease container handling; bumpers on trolley and walls.

Capacity and loads

• Example capacity (standard trolley height 183 cm): up to 18 containers 5 cm high, 11 containers 10 cm high, or 7 containers 20 cm high.
• For loads above 15 kg, stainless steel telescopic guides are recommended (in addition to or instead of side panels).

Product variants / internal codes

• APL-4.0E-TD (APOLLO single trolley - type E)
• APL-4.0UU-TD (APOLLO double trolley - type UU)
• APL-4.0U-GD (APOLLO single trolley - type U, glass door)
• APL-2.0EE-GD (APOLLO double trolley - type EE)
• APL-4.0EE-SD, APL-4.0E-SD, APL-2.0UU-SD and U/U U variants (e.g. type UUU) for multiple configurations

Characteristics / technical specifications

• Series: APOLLO
• Compatibility: ISO 60x40 modules (ISO 6040)
• Surface materials: top panel ABS, bottom panel PP, side panels PVC
• Top panel (solid door): HPL 4 mm thick, removable and washable
• Glass doors: 4 mm tempered glass
• Castors: 125 mm rubber swivel castors; typically 2 braked and 2 unbraked; external castor frame for increased stability
• Bumpers: integrated 360° bumper
• Locks: code, key, electronic; remote programming via Wi‑Fi when provided
• Roll-up door: counterbalanced system, removable without tools
• Example capacity: trolley height 183 cm → up to 18 x 5 cm / 11 x 10 cm / 7 x 20 cm containers
• Telescopic guides: stainless steel recommended for loads > 15 kg
• Cleaning: self-draining surfaces; washable versions suitable for dishwashers where specified
• Available types: roll-up door, glass door, solid door, open frame
