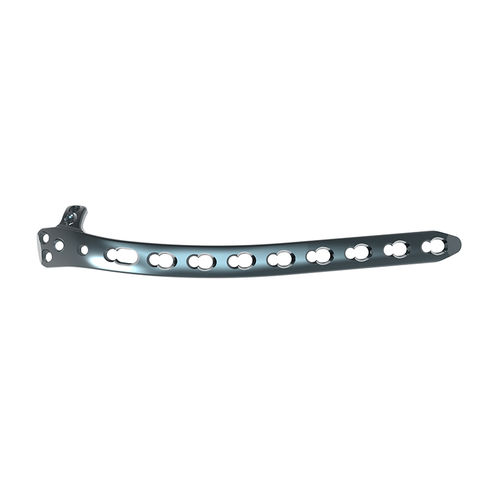

Humerus compression plate 30719 seriesdistallaterallocking
Add to favorites
Compare this product
Characteristics
- Applications
- humerus
- Part of bone
- distal, lateral
- Locking
- locking
- Length
65 mm, 91 mm, 117 mm, 169 mm, 195 mm
(2.6 in, 3.6 in, 4.6 in, 6.7 in, 7.7 in)- Number of holes
3 unit, 5 unit, 9 unit, 11 unit, 13 unit
Description
Distal Lateral Humeral Locking Plate II（L/R）
Product Introduction
Used for distal humeralfracture, supracondylar fracture of humerus and nonunions of humeral fracture
Screw: Head part 10960 2.7 Self-tapping Locking screw (20°)
Shaftpart 10751 3.5 LockingScrew /
10503 3.5 Cortical Screw
10520,10521 HB4.0 Cancellous Screw
InstrumentSet: 15001-888 Small Bone Fragment Instrument Set
