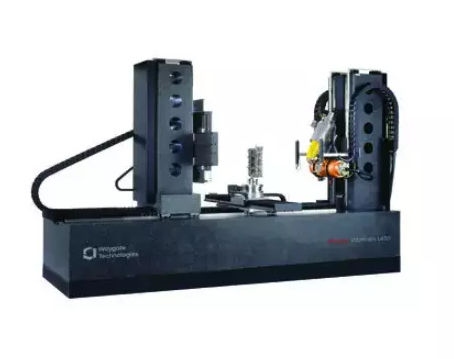

X-ray inspection system Phoenix V|tome|x L450

medical

Advanced minifocus CT scanning at the limits of sample size and density As the next technical expansion stage of the Phoenix V|tome|x L300 system, the Phoenix V|tome|x L450 provides even more flexibility, sample size and with its 450 kV / 1500 W minifocus and its optional 300 kV microfocus X-ray tube more penetration power to make it an excellent solution for void and flaw detection and 3D metrology of castings, large assemblies and AM parts. The Phoenix V|tome|x L450 is a large versatile minifocus system for 2D and 3D computed tomography and 2D non-destructive X-ray inspection. With its granite-based manipulation it is handling even large samples with high precision. The system is an excellent solution for void and flaw detection e.g. of castings or additive manufactured parts as well as 3D metrology conform to VDI/VDE 2630-1.3. An optional second 300 kV microfocus X-ray tube combined with an optional High-flux|target allows the Phoenix V|tome|x L450 to adapt to any kind of industrial and scientific CT application. User Benefits Great flexibility for 2D and 3D inspection on a wide application range Fast CT acquisition and brilliant images by next generation highly sensitive Dynamic 41 detectors Leading exclusive Waygate Technologies core components such as X-ray tubes, detectors, software Excellent software modules for highest CT quality and ease of use High throughput cone scatter fan beam CT Dimensional measuring with extremely high precision, reproducibility, and user-friendliness Failure detection and reproducible 3D metrology of steel parts and large aluminium castings
