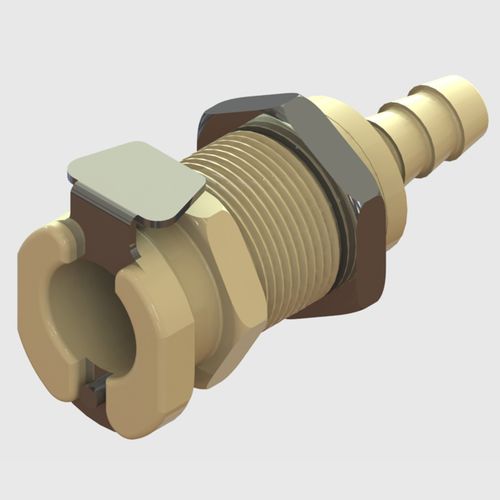

Medical coupling E-Q-160535
polypropylenebrass

medical coupling
medical coupling
medical coupling
Add to favorites
Compare this product


Characteristics

Applications
medical
Other characteristics
polypropylene, brass

Description

Polypropylene Panel Mount Socket, 6.4mm (1/4") ID Tube, Non-Valved, 1/4" Flow - Q4 Extended Description 1/4" Flow size Socket coupling in medical grade gamma-sterilisable Polypropylene, with metal audible click thumb-latch connection to mating Plug connector Ambient Temperature 0°C to 71°C (32°F to 160°F) Mounting Style Panel Mount Connection 1 To suit 6.4 mm (1/4") ID Tube Connection 2 To mating Plug Connector Recommended Filtration To suit application and media used Media Temperature 0°C to 71°C (32°F to 160°F) Non-Wetted Materials P5M6K-080 medical grade gamma-stable Polypropylene, Chrome Plated Brass, Stainless Steel Wetted Materials P5M6K-080 medical grade gamma-stable Polypropylene Cleanroom Manufactured Clean Room, Non-Certified
