Medical gas fitting E-F-171332medicaldatafemale
Add to favorites
Compare this product
Characteristics
- Applications
- for medical gas, medical, data
- Connection type
- female
- Configuration
- flexible
- Material
- brass
Description

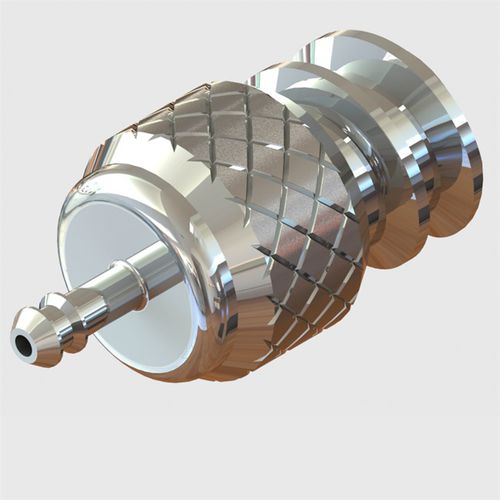

Female Luer Thread to .085" OD Barb, NP Brass
Extended Description
Nickel Plated Brass female luer thread connector with .085" OD barb suitable for .047" – .063" ID flexible tubing
Ambient Temperature
-40 - 200°C (-40 – 392°F)
Mounting Style
In-Line
Connection 1
To suit .047" - .063" ID Flexible Tube
Connection 2
Female Luer Thread
Media Temperature
-40 - 200°C (-40 – 392°F)
Non-Wetted Materials
Nickel-Plated Brass
Wetted Materials
Nickel-Plated Brass
Cleanroom Manufactured
No
Max. Inlet Pressure
No Data Available – Sample Test for Suitability
Operating Pressure
Vacuum – 3.1 bar (45 psi) As Specified in Testing to ISO 594
