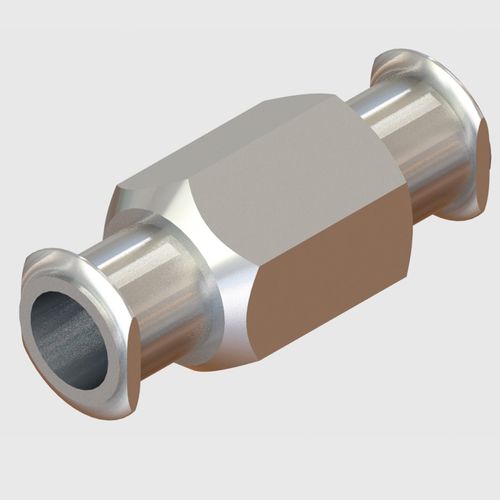

Female fitting E-F-171432
for medical devicesdatastainless steel

female fitting
female fitting
female fitting
Add to favorites
Compare this product


Characteristics

Type
female
Applications
for medical devices, data
Other characteristics
stainless steel

Description

Female Luer Lug to Female Luer Lug, Stainless Steel Extended Description 316 Stainless Steel female luer lug connector with female luer lug Ambient Temperature -40 - 200°C (-40 – 392°F) Mounting Style In-Line Connection 1 Female Luer Lug Connection 2 Female Luer Lug Media Temperature -40 - 200°C (-40 – 392°F) Non-Wetted Materials 316 Stainless Steel Wetted Materials 316 Stainless Steel Cleanroom Manufactured No Max. Inlet Pressure No Data Available – Sample Test for Suitability Operating Pressure Vacuum – 3.1 bar (45 psi) As Specified in Testing to ISO 594 Min Inlet Pressure Vacuum Effective Orifice Size 2.4 mm (0.09") Item Weight 0.0060 Kg ROHS Compliant Yes Regulatory Information ISO 594 REACH Compliant Yes Other Technical Data Suitable for compressed air and vacuum. The configurations are available on standard fittings. Due to many variations in materials used for tubing, please experiment with the various brabs to get the fit require. The tube inside diameter range represents a push-on assembly. Using tube expanding equipment or an external mechanical grip the range may expanded.
