Female connector E-F-171362

malefor medical devicesdata

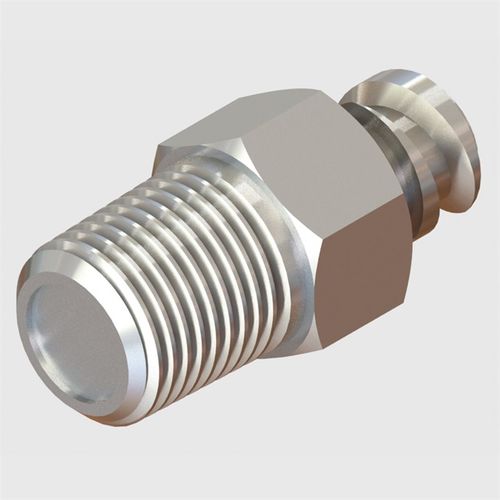

Female Luer Thread to 1/8" NPT Male Thread Valved Connector, NP Brass Extended Description Nickel Plated Brass female luer thread valved connector with 1/8" NPT Male Thread Ambient Temperature -40 - 200°C (-40 – 392°F) Mounting Style Threaded Connection 1 1/8" NPT Male Thread Connection 2 Female Luer Thread Media Temperature -40 - 200°C (-40 – 392°F) Non-Wetted Materials Nickel-Plated Brass Wetted Materials Nickel-Plated Brass, Silicone, 302 Stainless Steel Cleanroom Manufactured No Max. Inlet Pressure No Data Available – Sample Test for Suitability Operating Pressure Vacuum – 3.1 bar (45 psi) As Specified in Testing to ISO 594 Min Inlet Pressure Vacuum Effective Orifice Size Data not available Item Weight 0.0110 Kg ROHS Compliant Yes Regulatory Information ISO 594, ISO 80369-7 REACH Compliant Yes Other Technical Data This product is compliant to both ISO 594 and ISO 80369-7. Suitable for compressed air and vacuum. The configurations are available on standard fittings. Due to many variations in materials used for tubing, please experiment with the various barbs to get the fit require. The tube inside diameter range represents a push-on assembly.
