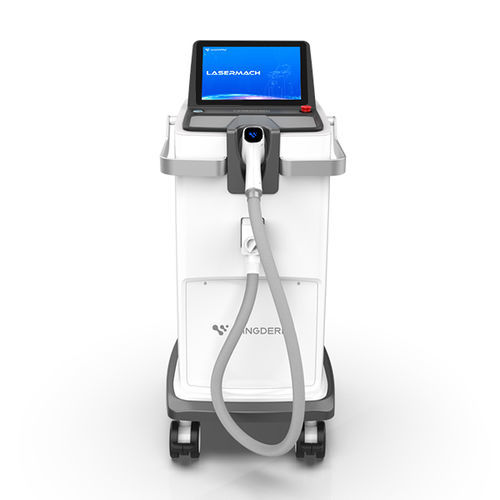

Hair removal laser Lasermach

diodetrolley-mountedmillisecond

Overview
Lasermach is a laser hair removal platform designed for clinical and aesthetic use on all skin types. The non‑invasive system supports single wavelengths (755 nm, 808 nm, 1064 nm) or a combined triple‑wavelength configuration and is intended for professional treatments with minimal downtime.

Key Features

• Wavelength options: 755 nm / 808 nm / 1064 nm (selectable single or combined triple‑wavelength).
• Max. spot size 12×20 mm for deeper penetration and increased treatment speed.
• Operation modes: Professional Mode for parameter adjustment and Aesthetic Mode with preset programs for standard protocols.
• 12.1″ high‑resolution touchscreen (16:9) with Android UI and Samsung 8-bit8-bit A53 1.4 GHz processor for intuitive control.
• Built‑in OLED on the applicator displays treatment settings and real‑time progress.
• Compressor cooling: industrial compressor achieves 4℃ in 4 seconds and maintains stable 4℃ during continuous high‑energy operation.
• Intelligent temperature control: PT100 sensor in applicator with PID algorithm maintains sapphire crystal at constant 4℃ for epidermal protection.
• Automatic 24‑point system check at startup to verify status and highlight issues before treatment.
• Applicator presence monitoring disables laser emission and stops cooling when applicator is returned to holder.
• Two‑stage water filtration (PP cotton + resin) to remove impurities and metal ions, protecting internal components.
• High‑reliability diode laser stacks rated up to 20,000 hours continuous operation and guaranteed for 20 million shots.
• Professional constant‑current pulse power supply with multi‑stage steady flow and anti‑shock protection to extend laser lifetime.
• 24 real‑time monitoring points and multiple internal safety checks for secure, energy‑efficient operation.
• Robust construction: all‑metal framework with durable ABS exterior, engineered water filtration and electrical isolation systems.

Aesthetic & Design Highlights

• Aluminum alloy handle for balanced handling.
• 45° angled screen for operator ergonomics.
• Hollow back design to improve cooling and maintenance access.
• Durable applicator piping material selected for longevity.
• Water level observation window for service checks.
• Foot switch and dedicated platform for hands‑free control.
• Integrated speaker for audible status and alerts.

Verification & Certification
Manufactured in accordance with international medical device standards. Wingderm® certified to EN ISO 13485:2016. The platform carries CE marking and has FDA clearance for its intended applications.

Video
The product page includes a demonstration video showing Lasermach features and standard operation procedures.

Technical specifications

• Wavelengths: 755 nm, 808 nm, 1064 nm (single or combined triple‑wavelength)
• Max. Spot Size: 12 × 20 mm
• Modes: Professional Mode and Aesthetic Mode (preset protocols)
• Touchscreen: 12.1″ HD touchscreen, 16:9, Android UI, Samsung 8-bit8-bit A53 1.4 GHz processor
• Applicator Display: Built‑in OLED for real‑time settings and progress
• Cooling System: Industrial compressor; cools to 4℃ in 4 seconds and maintains 4℃
• Temperature Sensor: PT100 with PID control to maintain sapphire crystal at 4℃
• Water Filtration: Two‑stage (PP cotton + resin)
• Safety Checks: Automatic 24‑point initiation check; applicator presence monitoring disables laser and cooling
• Laser Source: German‑manufactured diode laser bars; up to 20,000 hours continuous use; 20 million shots guaranteed
• Power Supply: Constant‑current pulse power supply with multi‑stage steady flow and anti‑shock function
• Standards & Certifications: CE marking, FDA clearance, EN ISO 13485:2016
