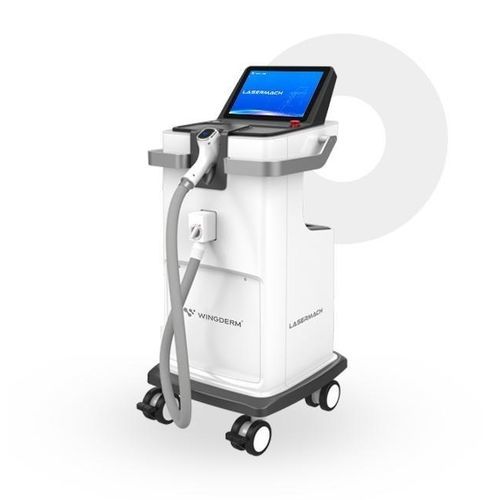

Hair removal laser Lasermach

diodetrolley-mountedmillisecond

Overview
Lasermach is an intelligent diode laser hair removal platform designed for clinical and aesthetic settings. Suitable for various hair types and skin tones, the system offers non‑invasive treatments with configurable Professional Mode and preset Aesthetic Mode to support consistent protocols and efficient workflows.

Key Features

• Wavelength: 808 nm
• CE marked, FDA cleared and NMPA approved for intended applications
• Maximum spot size 12 × 20 mm² for larger coverage and deeper penetration
• Professional Mode (adjustable parameters) and Aesthetic Mode (preset protocols)
• 12.1" high‑resolution touchscreen (16:9) with Android UI powered by a Samsung A53 1.4 GHz processor
• OLED applicator display showing real‑time settings and treatment progress
• Industrial compressor cooling: reaches 4℃ within 4 seconds and maintains stable 4℃ during use
• PT100 temperature sensor with PID control to keep the sapphire crystal at 4℃
• Automatic 24‑point startup safety check and applicator presence monitoring
• Double‑stage water filtration (PP cotton prefilter + resin stage) for extended component life
• High‑reliability diode laser bars with up to 20,000 hours continuous use and 20 million shots warranty
• Professional constant‑current pulse power supply with multi‑stage steady flow and anti‑shock protection

Operational & Safety Advantages
Lasermach integrates 24 real‑time monitoring items, internal safety routines and energy‑saving controls to alert operators before unsafe conditions. Applicator monitoring disables laser output when the handpiece is returned to the holder; cooling stops automatically when not in use, supporting safe clinic operation.

Design & Materials
The unit uses an all‑metal chassis with an ABS outer shell, aluminum alloy handle and a hollow back design for serviceability. Construction includes dedicated applicator piping, water level observation window, foot switch interface and integrated speaker. Electrical isolation and engineered water filtering preserve reliability in clinical use.

Verification & Certification
Manufactured to international medical device standards. Wingderm® holds EN ISO 13485:2016 certification and the product carries CE marking and FDA clearance for the intended indications.

Technical specifications

• Wavelength: 808 nm
• Maximum spot size: 12 × 20 mm²
• Cooling: Compressor cooling to 4℃ in 4 seconds; maintains 4℃ during continuous use
• Temperature sensing: PT100 sensor with PID control (sapphire crystal maintained at 4℃)
• Display: 12.1" touchscreen (16:9); OLED applicator display
• Processor: Samsung A53 8‑bit 1.4 GHz (Android‑based UI)
• Modes: Professional Mode (adjustable) and Aesthetic Mode (preset)
• Safety: Automatic 24‑point initiation check; applicator presence detection disables laser
• Filtration: Two‑stage water filtration (PP cotton + resin)
• Laser source: German‑manufactured diode laser bars — up to 20,000 hours continuous; 20 million shots guaranteed
• Certifications: CE, FDA clearance for intended applications, EN ISO 13485:2016
• Construction: All‑metal framework; ABS outer shell
