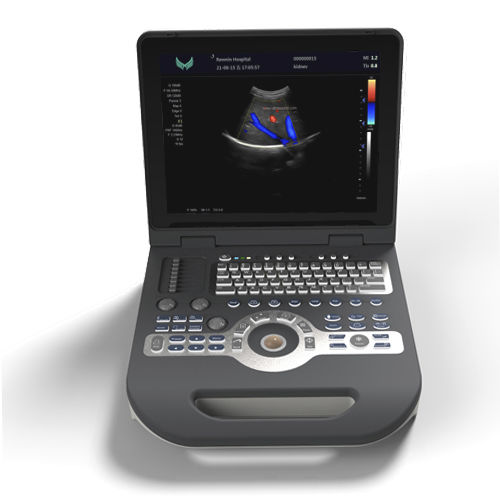

XF3500 Laptop Ultrasound Color Doppler Diagnostic Scanner
XF3500 is a laptop full digital color doppler ultrasound diagnosis system, It is a research and development of XIANFENG team combined with market demand in the original car type main based on the development and design new style,It is characterized by thin body, carrying sex good, appearance is compact, powerful, with types of probe can support more, image processing and measuring package software is rich, full blood flow image clarity, auxiliary functions such as adding PW envelope and three imaging modes and practical features such as real-time synchronization.It is widely used in the examination of abdomen, gynecology, obstetrics, urology, blood vessels, heart, bone and small organs, especially in the clinical examination of large medical institutions and primary medical system.It's a cost-effective instrument.
Range of application:
This color doppler ultrasound systemic applications include abdominal, obstetric, gynecological, cardiac, vascular, urinary, small organ, breast, pediatric and neonatal imaging, fetal heart imaging, puncture, etc.
Probe parameters:
--Convex: R60 (R50) Center frequency 3.5MHz (range: 2-6MHz)
--Linear: Center Frequency 7.5MHz (Range: 5-12MHz)
--Cavity probe(TVS): center frequency 6.5MHz (range: 5-12MHz)
--Micro-convex: center frequency 3.5MHz (range: 3-6MHz)
--High-frequency micro-convex probe: the center frequency of 5MHz (range: 4-8MHz)
Main Features:
.Real-time triple synchronization (B, PW, CFM)
·15 inch LED screen
·Depth range:50-360mm
.Built-in Battery
·Built-in 128G solid state drive,External USB storage
·Image optimization, Multi-Beam
