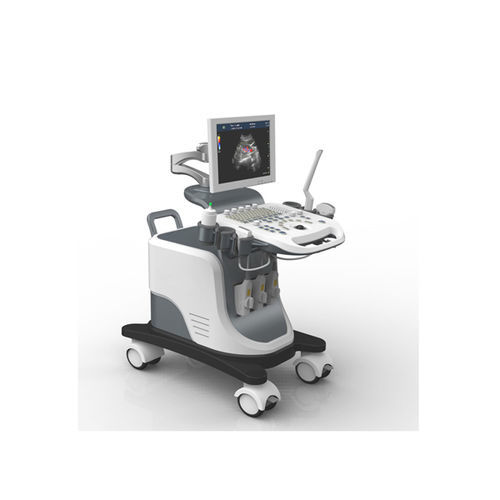

On-platform ultrasound system XF7700

for multipurpose ultrasound imagingB/Wcolor doppler

XF7700 Trolley Color Doppler Ultrasound Scanner I Functional Features *B/2B/4B/M/CFM/PDI/PW *THI(Tissue Harmonic Imaging) *Real-time 2D and Doppler Double Synchronization. *Real-time 2D ,Doppler and Color triple synchronization. *Free hand 3D imaging(Optional) *Four-dimensional Imaging (4D Optional) *Automatic measurement and analysis vascular intima *Compound Imaging *Probe Interface:Two Active Probe Interface *Multimedia and peripheral devices:Compact Disc-Recordable,USB portable storage device. Main Functions Having a full digital beam forming technology Scanning mode: Convex array, lumen, high-frequency linear array, phased array; Dynamic range: 0~120dB adjustable; Display mode: B、B/B、M、B/M、CFM、CMF/B、PDI、B/PW, total eight mode; Application mode: abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models; Image mode: digital beam forming, tissue harmonic imaging; Acoustic output: Mechanical index and thermal index real-time display; Acoustic power：Step is adjustable, real-time display; Gray scale: 256 scales; Depth display: ≥250mm; B/D dual-purpose: linear array: B/PWD; convex array: B/PWD; Pseudo color processing: 16 kinds of pseudo color encoding can optional; Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically; Image magnification: picture in picture zoom in and zoom part function;
