Toilet nurse call system YHE-997S

bedfor healthcare facilitiesfor nursing home

Short Description
YHE-997S nurse call system with recessed high-reliability connectors, tactile cancel and emergency switches, CALL/MONITOR LEDs and support for bedside extension YHE-6207.

Product Detail
YHE-997S nurse call system designed for care-home and hospital environments. Recessed high-reliability connectors and dedicated emergency inputs provide robust signal paths. CALL and MONITOR LEDs indicate call status and active monitoring. Microprocessor-controlled functions and a sensitive electret microphone ensure clear audio and reliable operation.

Product model
Primary model: YHE-997S

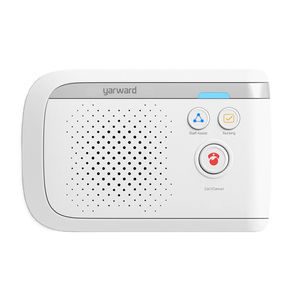

Bedside extension / related model: YHE-6207

Networking wiring
A two-bus topology is used: power, data and voice share a two-core conductor. Recommended cable: RVV2×1.5mm2. Extension numbers and broadcaster addresses can be encoded online for system scalability.

Display screen

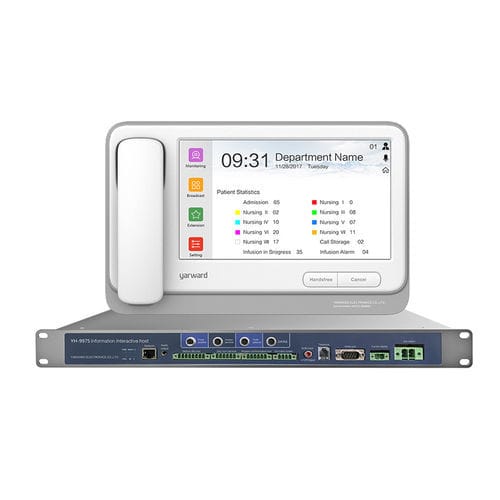

Aluminum front panel with a 7-inch touch LCD, 16M true color, resolution 800×480. Touch interface supports patient and nursing information display and interactive controls.

Major function

• Standby interface displays patient hospitalization data and nursing information.
• Menu interface supports at least 10,000 words for admission notes, doctor instructions, billing items and doctor profiles.
• LCD can show electronic nursing identification with automatic text and color conversion. “Call” key places a call to the nurse station and opens intercom; “Cancel” key clears calls.
• Surge call function allows staff in the room to request immediate assistance from other medical personnel.
• Call transfer and nurse location functions: the room can answer calls from other rooms; nurse station and corridor display panels can show nurse positions.
• Oxygen timing support with uploadable records.
• Door card-swipe function for evaluating nursing tasks and satisfaction.
• Support for short messages, call waiting and automatic voice alerts for medication and payments.
• Patient information text supports scrolling and large upward/left shift displays for lengthy content.
• Patient info interface can display multiple images simultaneously (e.g., nurse avatars, IDs, QR codes).
• Any text block in patient info can flash; text and background colors are configurable.
• Inner-menu tables on the bedside extension are customizable; each table stores up to 5,000 records and up to 100,000 Chinese characters, with fast paging.
• Bedside extension supports independent timing tasks without affecting other extensions; manual disable, continuous multi-audio playback and configurable time ranges are supported.

Caractéristiques / Spécifications techniques

• Primary model shown: YHE-997S
• Additional product model: YHE-6207 (bedside extension)
• Connectors: recessed high-reliability connectors
• Switches: tactile-effect cancel switch; emergency switch
• Indicators: CALL LED, MONITOR LED
• Emergency inputs: dedicated toilet emergency input
• Processing: microprocessor-controlled operating circuits
• Audio: sensitive electret microphone for clear pickup
• Installation: quick connect/disconnect prewired edge connector
• Network: two-bus network sharing two-core wire (power, data, voice); cable spec RVV2×1.5mm2
• Display: 7-inch touch LCD, aluminum panel, 16M true color, 800×480 resolution
• Storage/customization: inner-menu tables save up to 5,000 records per table (up to 100,000 Chinese characters)
• Functions: call, cancel, intercom, call transfer, nurse location, surge call, oxygen timing & record upload, short messages, call waiting, automatic voice alerts
• Bedside extension: independent timing tasks, multi-audio playback, configurable schedules
