Phone nurse call system YHE-916S

wallhand-heldbed

Overview
Wireless nurse call system YHE-916S provides centralized management for hospital wards and integrates with Windows PC software for patient call handling and record keeping.

Key features

• Master Host supports up to 200 extensions (bed, door, bathroom).
• Two-wire networking; recommended cable RVV2×0.5mm² — suitable for upgrading existing wards.
• Intercom and talkback between handset and bedside/main unit; bedside station includes Call Cancel.
• Handset with LED night light and one-key infusion replacement button.
• Alarm and corridor lights support nursing level indication, up to 25 colors, with optional scheduled light-off to protect patient rest.
• Door extension with multicolor lamp to indicate different situations; bath extension receives nurse-arrived and ward-inspection signals.
• Supports call transfer, cross-ward communication and Code Blue function.
• Nursing operation features: cancel unprocessed calls and nurse locating; online sub-station number setting for easy adjustments.

Technical specifications

• Model (system): YHE-916S

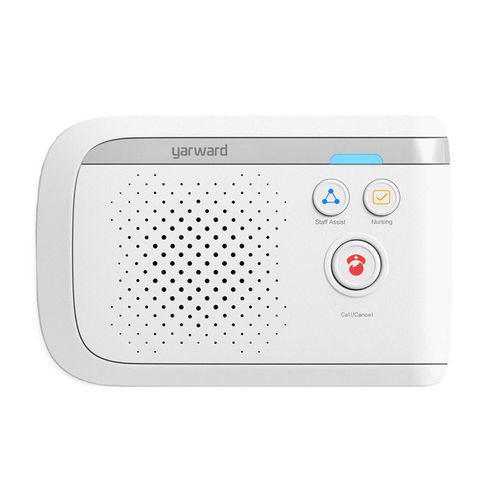

• Bedside station model: YH-510WS
• Corridor light model: YHE-637S (dimensions: 138×106×27 mm)
• Master Host capacity: up to 200 extensions (bed, door, bathroom)
• Wiring: two-wire networking, recommended RVV2×0.5mm²
• Alarm light: nursing level indication, supports up to 25 colors, optional scheduled light-off
• Intercom/talkback between handset and bedside/main unit; bedside station has Call Cancel
• Handset: LED night light, one-key infusion replacement button
• Functions: call transfer, cross-ward communication, Code Blue, nurse locating
• Online sub-station number setting for straightforward installation and adjustment

Models

• YHE-916S (main nurse call system)
• YH-510WS (bedside station)
• YHE-637S (corridor light: 138×106×27 mm)
