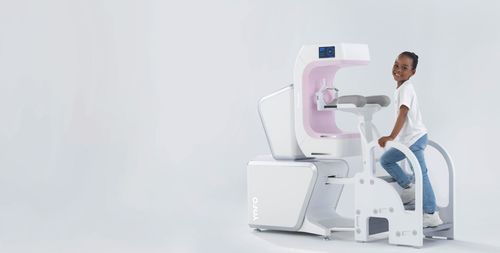

Digital dental CBCT scanner Hiroxis-15

4x4 cm8x8 cm15x16 cm

Overview
Hiroxis is a compact dental Cone Beam Computed Tomography (CBCT) system that delivers helical multi-view imaging for oral and maxillofacial diagnosis. It pairs a very small footprint with a true large field of view (up to 16 × 15 cm) and provides simultaneous acquisition of CT, digital panoramic, 3D frontal and lateral views and 3D TMJ views from a single rotation. The system is ready to use out of the box with no installation or calibration required. Shoulder rests and stable patient supports reduce motion and improve scan consistency.

Hiroxis in a Nutshell

• World’s smallest CBCT footprint; ready to use out of the box
• Helical dental CBCT enabling simultaneous multi-view acquisition
• Large true FOV up to 16 × 15 cm with multiple FOV options
• Patient‑centred positioning for improved scan consistency
• Engineered for long service life with reduced mechanical and tube wear
• Refined industrial design with customizable color options
• 360° room view available; product information and safety instructions included

Imaging capabilities
One rotation acquires CT, digital panoramic, 3D frontal & lateral and 3D TMJ datasets without additional image stitching. True large FOV up to 16 × 15 cm; additional FOV options: 16 × 9 cm, 8 × 8 cm, 4 × 4 cm. High spatial resolution visualizes fine anatomical structures; voxel size range 0.06–0.25 mm and grayscale depth 16-bit enable detailed diagnosis. Fast image reconstruction reduces waiting time for review.

Patient experience & workflow
Stable positioning supports pediatric, geriatric and other patients who may have difficulty remaining still. Shoulder rests improve stability and reduce motion artifacts. Faster, repeatable positioning streamlines operator workflow, reduces rescan frequency and contributes to minimizing patient radiation exposure.

Durability & design
Designed for long service life (planned operation up to 12 years). Features include low operating tube current and short pulsed exposures to limit X‑ray tube wear, slip‑ring data transmission and an integrated one‑piece structure to reduce mechanical wear. Industrial design suited to clinical environments with optional color customization.

Intended use & users
Intended use: dental Cone Beam Computed Tomography system for X‑ray image diagnosis of oral and maxillofacial regions in medical and dental institutions. Intended users: radiologists, dental radiographers or technologists trained in medical imaging. Contraindication: not recommended for pregnant women or women who may become pregnant. Operators must follow radiation protection procedures and the user manual; maintenance and operation should be performed by trained personnel.

Technical specifications

• Model: YOFO-Hiroxis-15
• Field of View (FOV): 16 × 15 cm / 16 × 9 cm / 8 × 8 cm / 4 × 4 cm
• Imaging mode: Simultaneous Multi-View Acquisition (CT, panoramic, 3D frontal & lateral, 3D TMJ from one rotation)
• Grayscale: 16-bit
• Maximum spatial resolution: up to 25 lp/cm
• Voxel size: 0.06–0.25 mm
• Scan time options: 12 s, 20 s, 26 s
• Reconstruction time: 2.6 s
• X-ray tube voltage: 60–90 kV
• Tube current (spec): 2–12 mA; typical operating current (durability): 4–8 mA
• Focal spot size: 0.5 mm
• Detector: Indium Gallium Zinc Oxide (IGZO) flat panel detector
• System dimensions (W × L × H): 594 × 1122 × 1450 mm (±15 mm)
• Footprint: Length 1.12 m; Height 1.45 m; Width 0.59 m; Ultra-compact footprint: 0.66 m²
• Reliability features: slip‑ring data transmission, one‑piece integrated structure, low tube wear design (≤20 s pulsed exposure)
• Safety notes: generates X‑ray radiation — follow radiation protection procedures and the user manual; risk of electric shock if protective enclosures are removed or unit is powered during maintenance
