HD imaging endoscopy column YSNJ-100VET

white light imagingFull HD imaging

Overview

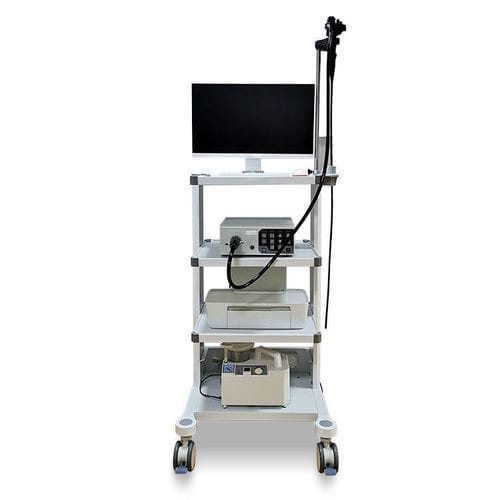

The Veterinary Video Endoscope System YSNJ-100VET integrates an image processor and LED light source with a 24\" Full HD monitor and 500 GB internal storage. It is designed for veterinary endoscopic examination, documentation and reporting, supporting flexible endoscopes and optional rigid endoscope camera systems.

Main features

• Integrated image processor & light source: YSNJ-100VET
• White balance; photo 1280x720; video 1280x720 @ 30 fps; output 1920x1080
• Built-in 500 GB HDD for image/video storage
• 24\" Full HD monitor (DELL)
• LED light source (CRI 93%, 1000 Lm, adjustable)
• Air pump with 3 speeds
• Built-in medical records management software; keyboard and mouse support
• Automatic report generation with direct printer connection
• Supports flexible endoscopes; rigid endoscope camera optional

Endoscopes table
Models: YSNJ-1050VET | YSNJ-1500VET | YSNJ-3300VET
Field of view: 145° | 145° | 145°
Depth of view: 3 mm-100 mm | 3 mm-100 mm | 3 mm-100 mm
Tip bending range: Up 210° L 100°; Down 90° R 100° | Up 210° L 100°; Down 90° R 100° | Up 180° L 160°; Down 180° R 160°
Diameter of distal end: Φ6.3 mm | Φ8.3 mm | Φ12.9 mm
Diameter of insertion tube: Φ6.3 mm | Φ8.3 mm | Φ12.9 mm
Instrument channel diameter: Φ2.0 mm | Φ2.8 mm | Φ3.7 mm
Working length: 1050 mm | 1500 mm | 3300 mm
Optical sensor: HD 720P | HD 720P | HD 720P

Included / product attributes

• Model: YSNJ-100VET
• Brand: YSENMED
• MOQ: 1
• Ship from: Guangzhou, China
• Shipping: customer-preferred terms

Technical specifications

• Photo resolution: 1280 x 720
• Video resolution: 1280 x 720 @ 30 fps
• Output resolution: 1920 x 1080
• Internal storage: 500 GB HDD
• Monitor: 24\" Full HD (DELL)
• Light source: LED, CRI 93%, 1000 Lm, adjustable
• Air pump: 3-speed
• Software: built-in medical records management; keyboard/mouse support
• Reporting: automatic report generation; direct printer connection
• Endoscope options: flexible models YSNJ-1050VET / YSNJ-1500VET / YSNJ-3300VET with channel diameters Φ2.0 / Φ2.8 / Φ3.7 mm and working lengths 1050 / 1500 / 3300 mm
