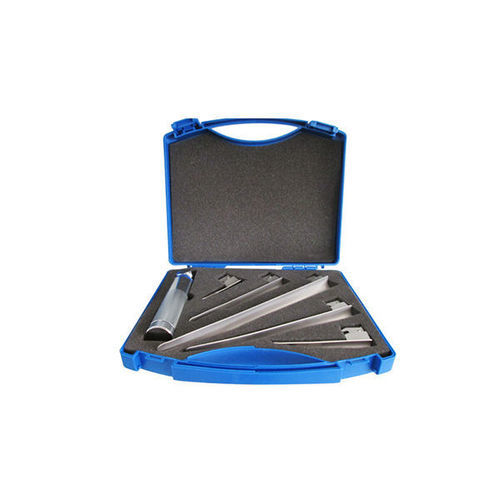

Portable veterinary laryngoscope YSVET-200HJ

Short description
YSVET-200HJ is a veterinary anesthesia laryngoscope with an integrated LED light and removable sight lens, designed for tracheal intubation and veterinary oral/ENT procedures. Blades are straight and available in five sizes to cover a wide range of animal patients.

Technical parameters

• Blade sizes: Size 0 — 75 mm; Size 1 — 100 mm; Size 2 — 155 mm; Size 3 — 195 mm; Size 4 — 250 mm
• Light source: LED
• Material: Stainless steel (blades)
• Power supply: 2 × 1.5V batteries (type 2#)

Clinical application

• Tracheal intubation in animals
• Assisting vocal cord procedures
• Illumination for oral surgery and dental inspection

Installation & Disassembly

• Installation: 1) insert the peep lens into the handle; 2) lift the peep lens gently; 3) the unit is ready when it clicks and the power light turns on
• Disassembly: 1) press the peep lens downward gently; 2) push the peep lens diagonally upward to remove; 3) disassembly complete

Difference between veterinary laryngoscope and human laryngoscope

• Veterinary laryngoscope: Straight blades available in five sizes for small and large animals; blade lip on the right side to suit animal intubation position.
• Human laryngoscope: Curved, shorter blades with blade lip on the left side; not adapted to typical animal intubation positions.
