X-ray detector YSDEN-DR535

image qualityfor dental radiographyportable

Product Overview

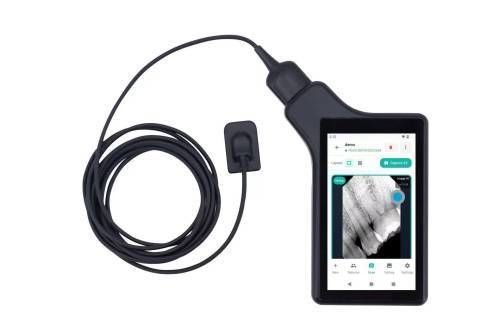

Portable digital intraoral sensor imaging system for dental radiography, available in models YSDEN-DR535 and YSDEN-DR550. Optionally integrates a 5" display for on-site imaging and review. Compatible with standard dental X-ray units and suited to chairside use.

Sensor Features

• APS CMOS sensor technology
• Smart connection technology for simplified workflow
• Compatible with a wide range of X-ray machines
• Direct-growth cesium iodide (CsI) scintillator using direct evaporation technology
• Ultra-high-sensitivity USB 2.0 direct interface
• Thin ergonomic design with thumb position and smooth edges
• Protection rating IP68 suitable for soak disinfection
• Supports TWAIN protocol

Sensor Specifications
Type: YSDEN-DR535 / YSDEN-DR550
Mechanical dimensions (mm): 42.5 × 29.2 × 4.5 / 45.0 × 31.0 × 4.5
Effective imaging area (mm): 24 × 33 / 26 × 36
Pixel matrix: (1.5M) 1200 × 1650 / (2.34M) 1300 × 1800
Sensor type: APS CMOS
Scintillator: Direct-growth cesium iodide (CsI)
Cable length (m): Standard 2.8
Pixel size (μm): 20
Spatial resolution: Theoretical 25 Ip/mm; Actual: 14–16 Ip/mm (high sensitivity) or 18–20 Ip/mm (high resolution)
Gray scale: 16-bit (65,535 levels)
Exposure mode: SMART AED
Ingress protection: IP68 (soak disinfection capable)
Accessory functions: TWAIN protocol support
Operating system: Windows 7 and above, 32/64 bit

Display System
Screen size: 5"
Resolution: 720 × 1280
Memory: 3 GB RAM
Storage: 32 GB (supports TF card up to 256 GB)
Power input: 5 V / 1 A

Product Attributes

• Model: YSDEN-DR535 (also available YSDEN-DR550)
• Brand: YSENMED
• Minimum order quantity: 1 unit
• Ship from: Guangzhou, China
• Shipping terms: Flexible, per customer request

Technical specifications

• Sensor type: APS CMOS
• Scintillator: Direct-growth CsI
• Pixel size: 20 μm
• Pixel matrix: DR535 1200×1650 (1.5M); DR550 1300×1800 (2.34M)
• Effective imaging area: DR535 24×33 mm; DR550 26×36 mm
• Mechanical dimensions: DR535 42.5×29.2×4.5 mm; DR550 45.0×31.0×4.5 mm
• Cable length: 2.8 m (standard)
• Spatial resolution: Theoretical 25 Ip/mm; Actual 14–20 Ip/mm depending on mode
• Gray scale: 16-bit
• Interface: USB 2.0 direct connection
• System compatibility: TWAIN support; Windows 7 and later (32/64 bit)
• Display: 5" screen, 720×1280, 3 GB RAM, 32 GB storage (expandable)
