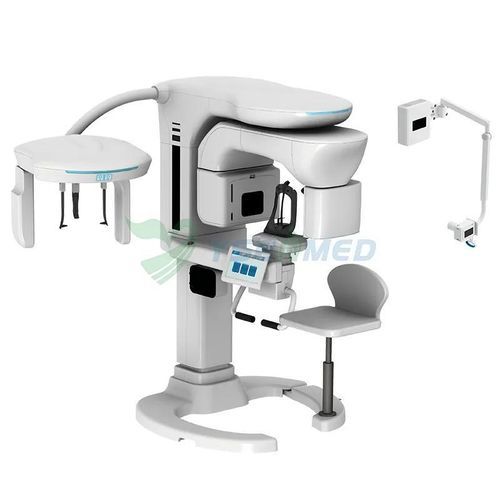

Digital dental CBCT scanner YSX1005R

with cephalometric X-ray16x12 cm

Product Overview
All-in-one low-dose natural imaging dental CBCT. MODEL: YSX1005R. Integrates CBCT, panoramic (OPG) imaging with optional cephalometric and intraoral X-ray modules, plus an optional integrated sliding chair for versatile dental and maxillofacial imaging workflows.

CT

• Available FOVs: 18 x 14 cm, 16 x 12 cm, 18 x 10 cm.
• Minimum voxel size: 0.05 mm for high-detail diagnostics.
• Adjustable FOV supports complete maxillofacial examination including dentition, TMJ and sinus assessment.
• Non-fusion single-scan CBCT captures full dentition, TMJ and maxillary sinuses to support procedures such as sinus lift and zygomatic implant planning.

OPG (Panoramic)

• Dynamic Focusing Tomosynthesis and Clear-Vision algorithms provide clear, detailed panoramic images for diagnostic and treatment planning use.
• Segmented panoramic scanning enables single-segment acquisitions to limit repeat exposures and reduce patient dose.

Ceph (OPTIONAL)

• Optional cephalometric capability for high-resolution standard and lateral cranial views suitable for orthodontic and surgical analysis.

Intraoral X-Ray Device (OPTIONAL)

• Two optional installation methods provide flexible, stable positioning for intraoral radiography.
• Compact installation requires a single room, saving space and reducing clinic setup costs.

Integrated Sliding Chair (OPTIONAL)

• Ergonomic industrial design combined with functional adjustability.
• Sliding and adjustable chair supports seated and standing scans, improving accessibility for elderly and mobility-impaired patients.
• Seated scan option helps reduce motion artifacts and enhances image stability.

Product Configuration List
Srial No.    Name    Quantity    Remarks
1    Machine Head    1 set    Standard Configuration (Including Electrical Control System)
2    Rotary Arm, Column    1 set    Standard Configuration
3    Fixed Arm with Touch Screen    1 set    Standard Configuration
4    Panoramic, CT Linear Array Sensor    1 set    Standard Configuration
5    Ceph Linear Array Sensor    1 set    Optional Configuration
6    X-ray Generation Device    1 set    Standard Configuration
7    Dental Radiography Device    1 set    Optional Configuration
8    Integrated Sliding Chair    1 set    Optional Configuration
9    X-ray Mobile Exposure Hand Switch    1 set    Standard Configuration
10    Ear Clip    1 set    Standard Configuration
11    Workstation Hardware    1 set    Standard Configuration
12    Orthodontic Software    1 set    Optional Configuration
13    Post-processing Software    1 set    Standard Configuration
14    Image Management Software    1 set    Standard Configuration
15    Image Acquisition Software    1 set    Standard Configuration

Product Images (examples shown on page)
Product and clinical application photos illustrate the machine head, sensors, chair and representative imaging results; consult the product gallery for examples.

Technical Specifications / Features

• Model: YSX1005R
• Brand: YSENMED
• Category: CT Scanner / Dental CBCT with OPG
• Available FOV sizes: 18 x 14 cm, 16 x 12 cm, 18 x 10 cm
• Minimum voxel size: 0.05 mm
• Imaging modes: CBCT (non-fusion single scan), Panoramic (segmented scan), Optional Ceph, Optional Intraoral X-ray
• Algorithms: Dynamic Focusing Tomosynthesis Algorithm, Clear-Vision Algorithm
• Optional accessories/configurations: Ceph linear array sensor, Intraoral X-ray device, Integrated sliding chair, Orthodontic software, Post-processing software, Workstation hardware, Image management and acquisition software
• Standard included items: machine head (with electrical control system), rotary arm & column, fixed arm with touch screen, CT/panoramic linear array sensor, X-ray generation device, mobile exposure hand switch, workstation hardware, image acquisition/management/post-processing software
• MOQ: 1
• Ship From: Guangzhou, China
• Shipping: Flexible shipping terms available per customer request
