Temperature sensor MultiLab IDS 4310

conductivitycalibrationprocess

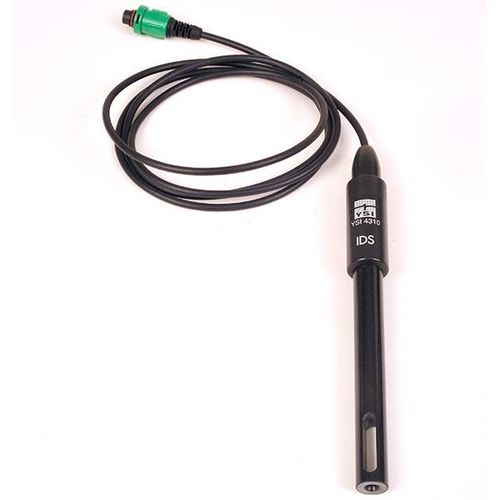

IDS 4310 digital conductivity/temperature probe for the YSI MultiLab. Features an epoxy body, 4-graphite electrodes, and a 1.5 meter cable. The 4310 probe can only be calibrated with a 1,413 uS/cm conductivity standard (060906) (Select in "Option" drop down menu). The IDS sensors automatically store their unique serial number and calibration data. In addition, they also digitally process the measurement signal. The IDS sensors can be moved from instrument to instrument and maintain their calibration data and transmit that information to the new instrument. Specifications Cell Constant - 0.475 cm-1 ±1.5 % Equipment used with - MultiLab Instruments Measurement Range - Conductivity: 1 µS/cm to 2,000 mS/cm | Resistivity: 0.5 Ohm cm to 100 kOhm cm | Salinity: 0.0 to 70.0 ppt | Total Dissolved Solids: 0 to 1,999 mg/L; 0.0 to 199.9 g/L | Temperature: 0 to 100ºC Minimum Immersion Depth - 36 mm Parameters Measured - Conductivity, Temperature Storage Temperature - 0 to 50 °C Warranty - 2 years
