Universal data logger HydroRIG

for environmental measurementswirelessUSB

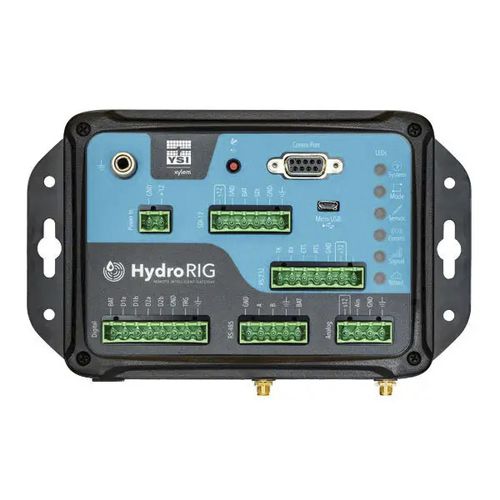

HydroRIG is an all-in-one IoT gateway device that makes environmental monitoring smarter, faster, and easier. Deploy it at new or existing sites to connect your field instruments to the cloud through HydroSphere, and start receiving data from Xylem or third-party sensors. Overview HydroRIG is a remote intelligent gateway that transforms how you gather and analyze environmental data. It combines the functions of a data logger and modem in one compact device, with no configuration needed. Connect your environmental sensors, power your HydroRIG on, and you're online! Data flows straight to the cloud where you can visualize trends, access and download real-time data, and stay in control from anywhere with HydroSphere, YSI’s web-based data visualization platform. 1. Grounding Lug 2. Power in port 3. Wake/sensor-pair button 4. External modem* 5. Micro USB 6. LED Indicators 7. Digital port (up to 2 sensors) 8. SDI–12 port (up to 10 sensors) 9. RS–485 port (1 sensor) 10. RS–232 (1 sensor) 11. Analog port (1 sensor) 12. Diversity antenna (CAT-1 model) 13. Mini SIM card slot 14. GPS antenna 15. Cellular antenna Multi-Sensor Connectivity Connect 15 environmental sensors at once, including Xylem and most third-party sensors. Rapid Deployment Start receiving real-time data in 15 minutes or less from connected sensors. Fully Integrated with HydroSphere Set user-defined alarms with parameter-based thresholds and gain access to a pre-configured sensor library. Enhanced Protection & Security Advanced security using Amazon’s AWS data center and 24/7 security monitoring with Xylem Operations Center.
