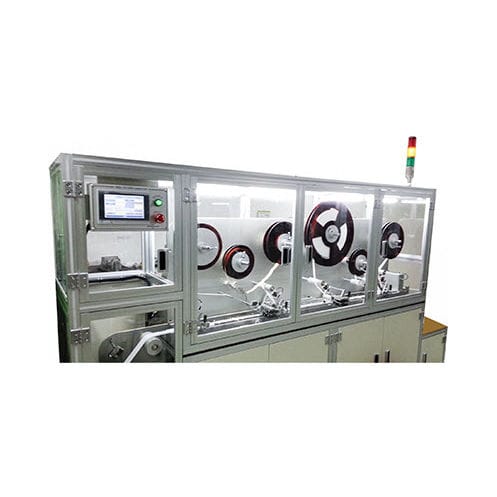

Diagnostic material laminating module LAI-804

diagnostic material laminating module
diagnostic material laminating module
Add to favorites
Compare this product


Characteristics

Options
for diagnostic materials

Description

The Reel to Card Laminator, LAI series is a line of fully-automated systems for automatically laminating single to multiple materials (membrane, conjugate / sample / absorbent pads, and cover tape in roll form) onto the automatically fed plastic backing in roll form. The alignment fixtures accurately guide and position each material one by one for precise lamination. Then the plastic backing with all laminated materials is cut into preset card length to produce finished master card where they are stacked into a tray to finalize the process The entire process from start to finish is carried out in a non-stop continuous mode for the ultimate production efficiency. By requiring virtually no assembly workers and their mis-handling of materials, the system not only ensures optimal quality control, but also maximizes throughput while minimizing material waste saving time and money. PRODUCT SPECIFICATIONS - Feeding Method: Automatic (Roll type) - Capacity: 800 ~ 1200 cards/hour (Based on card cut length of 300mm) - Lamination Tolerance: ± 0.2 mm (Material irregularity not included) - Dimensions: About 2400 ~ 3000(L) × 700(W) × 1600(H) mm - Weight: About 320~350 Kg - Power: 110 or 230 V, 50 or 60 Hz - Current: 0.4 KVA, 3 A MATERIAL SPECIFICATIONS *Customer’s requirement dependent - Backing Card Roll Width: 50~100 mm - Backing Card Roll OD: Max. 400 mm - Membrane Width: Min. 5 mm - Membrane Roll OD: Max. 200 mm - Absorbent Pad Width: 15~36 mm - Absorbent Pad Roll OD: Max. 500 mm - Conjugate Pad Width: Max. 25 mm - Conjugate Pad Roll OD: Max. 300 mm
