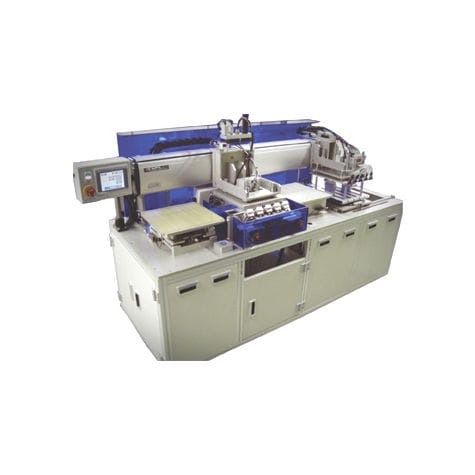

Laminating module CLAG-100

CLAG-100 is an automatic laminating system which is designed to process multiple jobs that are required for the application of cover film (glucose assay type) lamination. Operation process includes manual sheet loading, film position alignment, protective film removing and lamination. FEATURES SPECIFICATIONS - Required Manpower: 1 person - Applicable Material: (As per customer’s requirement) - Cover Film Size: (As per customer’s requirement) - Capacity: About 13 sec/sheet - Heating Temperature: 50℃ (max 100℃) - Temperature Inaccuracy of Heating Roller: ±2℃ - Main Components: Spin motor, up down cylinder, heating roller - Dimension: NA (Available upon request) - Weight: N/A (Available upon request) - Power: 110 or 220VAC, 1P, 50/60Hz - Current: 3.5KVA, 15A - Air Requirement: 5~7 kgf/㎠, clean air
