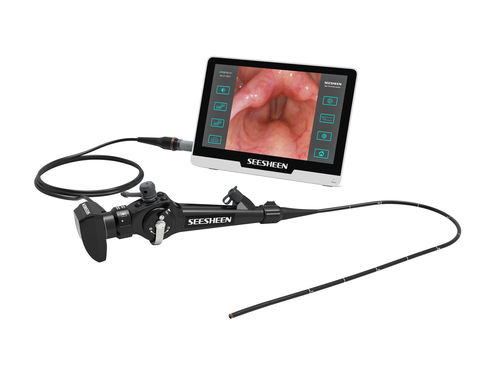

Pediatric video bronchoscope AF-2031high-definitionwide-anglefull HD
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Patient type
- pediatric
- Optical
- high-definition, wide-angle, full HD
- Options
- with integrated video monitor
- Working length
610 mm
(24 in)- Total diameter (mm)
2.8 mm
(0.1 in)- Operating channel diameter (mm)
1.2 mm
(0 in)- Angle of view (°)
120 °
- Direction of view (°)
0 °
- Angulation range (°)
130 °, 210 °
Description
Specifications
· Model: AF-2031
· Insertion Tube: 2.8mm
· Distal End: 3.0mm
· Working Channel: 1.2mm
· Working Length: 610mm
· Field of View: 120°
· Depth of Field: 3-200mm
· Bending (Up/Down): U210° /D130°
Application
Anesthesia Pediatric
Advantages
· Multi-function Buttons:
① Zoom in/out
② Capture/record
③ Freeze/release
· Bending: U210°/D130°.
· Angle Lock: Lock or release the angle of distal end for accurate diagnosis and treatment.
· Rotation: L/R 120°
· CMOS+LED: CMOS sensor for high quaity picture.
· Smaller OD but bigger ID, 120° Field of View, 3-200mm Depth of field.
· Suction Valve Retainer: Unique design prevents the suction valve from falling off.
· Image Processor:
① 4" Touch Screen HV-50: Industry-leading patent for high quality picture with detachable & rechargeable battery (Backup battery in case of power failure).
② 10.1"" Image Processor HV-3101: Video adapter cable with 180° rotation for doctor's operation preferencfes.
