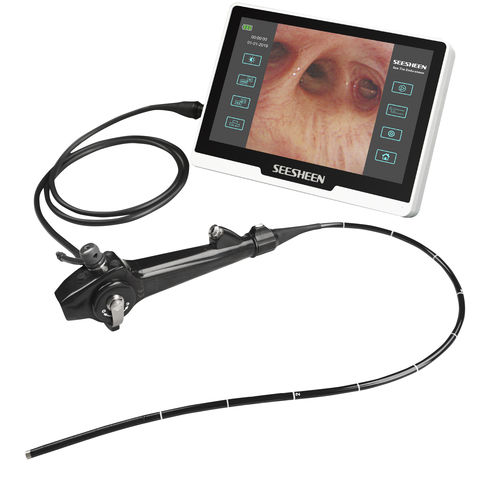

Video bronchoscope with integrated video monitor BR-1259
Add to favorites
Compare this product
Characteristics
- Options
- with integrated video monitor
- Working length
610 mm
(24 in)- Total diameter (mm)
5.8 mm
(0.2 in)- Operating channel diameter (mm)
2.8 mm
(0.1 in)- Angle of view (°)
90 °
- Angulation range (°)
130 °, 180 °
Description
Specifications
· Model: BR-1259
· Insertion Tube: 5.8mm
· Distal End: 6.3mm
· Working Channel: 2.8mm
· Working Length: 610mm
· Field of View: 90°
· Depth of Field: 3-50mm
· Bending (Up/Down): U180°/D130°
· Rotation (Left/Right): L/R 120°
Advantages
· Multi-function Buttons:
① Zoom in/out
② Capture/record
③ Freeze/release
· Passive Bending: Smooth bronchial advancement and less mucosal injury.
· Rotation: L/R 120°, improve operation flexibility and accuracy.
· Suction Valve Retainer: Unique design prevents the suction valve from falling off.
· Image Processor:
10.1" Image Processor HV-3101
