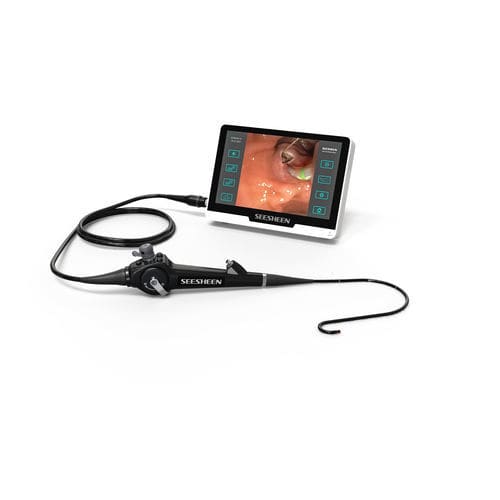

Video cholangioscope with integrated video monitor CH-1331
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Options
- with integrated video monitor
- Working length
450 mm
(17.7 in)- Total diameter (mm)
3.1 mm
(0.1 in)- Operating channel diameter (mm)
1.2 mm
(0 in)- Angle of view (°)
120 °
- Angulation range (°)
130 °
Description
Specifications
· Model: CH-1331
· Insertion Tube: 3.1mm
· Distal End: 3.2mm
· Working Channel: 1.2mm
· Working Length: 450mm
· Field of View: 120°
· Depth of Field: 3-50mm
· Bending (Up/Down): U130°/D130°
Applications
Hepatobiliary Department
Advantages
· Multi-function Buttons:
① Zoom in/out
② Capture/record
③ Freeze/release
· Bending Angle: Improve operation flexibility and accuracy.
· Fiber-free design makes it more durable.
· Thin Outer Diameter: Easier insertion and less invasive treatment.
High-Quaity Image: Excellent image gives more details.
Portable: Equiped with image processor supports external monitor.
