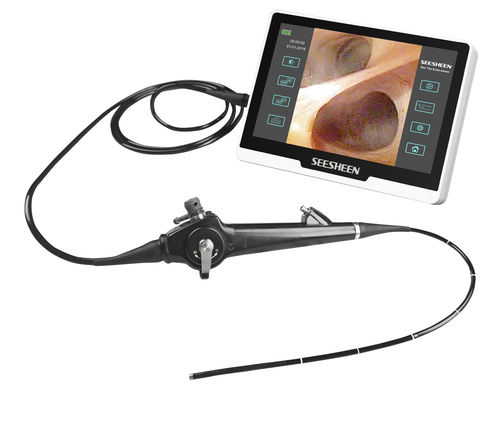

Pediatric video cholangioscope CH-1349with integrated video monitor
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Patient type
- pediatric
- Options
- with integrated video monitor
- Working length
380 mm
(15 in)- Total diameter (mm)
4.8 mm
(0.2 in)- Operating channel diameter (mm)
2 mm
(0.1 in)- Angle of view (°)
120 °
- Angulation range (°)
90 °, 130 °
Description
Specifications
· Model: CH-1349
· Insertion Tube: 4.8mm
· Distal End: 5.0mm
· Working Channel: 2.0mm
· Working Length: 380mm
· Field of View: 120°
· Depth of Field: 3-50mm
· Bending (Up/Down): U175°/D130°
Applications
Hepatobiliary Department
Advantages
· Multi-function Buttons:
① Zoom in/out
② Capture/record
③ Freeze/release
· Bending Angle: Improve operation flexibility and accuracy.
· Fiber-free design makes it more durable.
· Thin Outer Diameter: Easier insertion and less invasive treatment.
High-Quaity Image: Excellent image gives more details.
Portable: Equiped with image processor supports external monitor.
