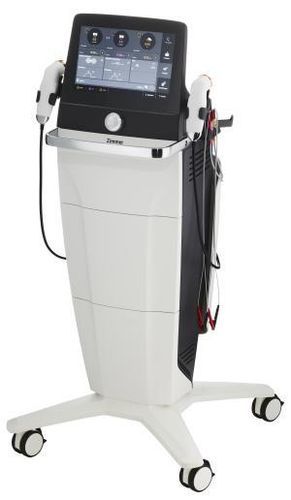

Electric stimulator PhySys

ultrasound stimulatorTENS2-channel

Overview
The PhySys is an ergonomic therapy device combining electrotherapy and therapeutic ultrasound in a single system. It offers three independent therapy channels and supports simultaneous application of ultrasound and electrostimulation to increase treatment flexibility and workflow efficiency in physiotherapy clinics and rehabilitation centers.

Application spectrum

• • Pain management: acute, subacute and chronic conditions
  • Muscle stimulation and re-education
  • Improved local circulation and tissue regeneration
  • Scar and soft tissue healing
  • Treatment of bursitis, tendinopathies and epicondylopathies
  • Ionophoresis and phonophoresis applications

Ultrasound and electrotherapy combined

• Electrotherapy: 2 independent channels with 27 current waveforms (including Interference, TENS, Diadynamic, Galvanic, Microcurrent, High Volt and IG)
• Ultrasound: 1 & 3 MHz, continuous or pulsed mode (0–3 W/cm²)
• 3 therapy channels: 2 for electrotherapy, 1 for ultrasound
• Simultaneous operation: combined ultrasound and electrostimulation treatments
• Display: 12.4″ full-color touchscreen
• Option: vacuum unit with massage effect (Vaco)
• Memory: over 120 therapy programs and favourite slots

Picture gallery (representative)

• Clinical and device images showing frontal and side views and component details of PhySys (applicator, electrode holder, drawers, accessories)

Technical specifications

• Power supply PhySys: 100–240 V~ / 50/60 Hz, 220 V~ / 60 Hz
• Power consumption PhySys: max. 150 VA
• Power consumption Vaco: max. 60 VA
• Protection class: I
• Fuses: 2 × T 2.0 A L, 250 V
• Applied part: Type BF
• Ultrasound: Frequencies: 1 and 3 MHz; Number of channels: 1; Mode: continuous and pulsed; Duty cycles: 5%, 10%, 20%, 33%, 50%, 80%; Pulse frequencies: 16 Hz, 48 Hz, 100 Hz; Intensity: 0–2 W/cm² continuous, 0–3 W/cm² pulsed; Contact area: large and small applicator contact areas (specified for applicators)
• Electrotherapy: Channels: 2 (fully independent in intensity and parameters), parallel or alternating; 2-channel synchronization; Current control modes: CC or CV; 27 current waveforms including Interference, TENS, Diadynamic, Galvanic, Microcurrent, High Volt, IG
• Vacuum (only with column): Max. operating pressure: 500 mBar; Waste container: 140 ml; Adjustable application settings; Vacuum intensity controlled via touchscreen; Operation modes: continuous or pulsed
• Dimensions PhySys: H 118 × W 35 × D 35 cm
• Weight: PhySys with column and Vaco unit: 26 kg
