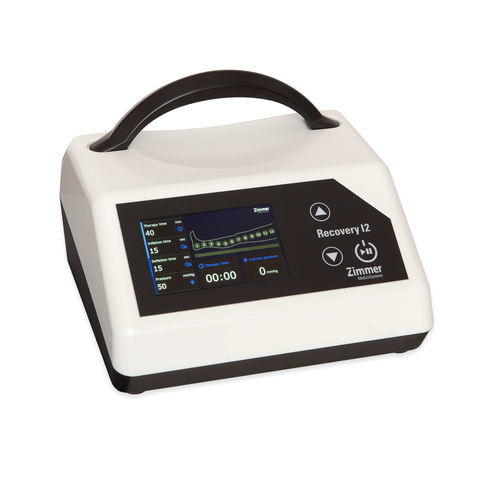

Pressure therapy unit Recovery 12

tabletop

Overview
The Recovery 12 is a digital pneumatic compression therapy device with 12 sequential air chambers designed to support recovery and improve circulation. The cuffs inflate from distal to proximal to produce rhythmic compression on muscle and soft tissue. Adjustable pressure and timing parameters allow tailored protocols for clinical and sports-recovery applications.

Operation and control
The system uses a powerful compressor to control the sequential inflation of the 12 chambers. Users adjust pressure, treatment duration and other settings via a multi-information touch display. Control is available directly on the device, via remote control or through a mobile app for iOS and Android. Color-coded, secure hose connections simplify daily use.

Clinical benefits

• Sequential 12-chamber compression for graduated blood and lymph mobilization
• Adjustable pressure and treatment time to fit clinical needs
• Supports reduction of edema and promotes circulation
• Adaptable compression garments for different body sizes
• Multiple control options (touch, remote, app) for workflow flexibility

Technical highlights

• 12-stage sequential compression
• Pressure range: 15–95 mmHg
• Adjustable therapy duration: 15–80 minutes
• Multi-information touch display
• Control via app (Android and iOS)
• High-performance compressor

Technical data
Therapy

• Pressure range: 15 – 95 mmHg
• Therapy duration: 15 – 80 minutes
• Deflation time: 15 – 120 seconds
• Filling time: depends on garment volume

System

• Power supply: AC 230 V / 50–60 Hz
• Power adapter: DC 24 V / 1.5 A
• Dimensions (W×D×H): 207 × 207 × 182 mm
• Weight: 2.1 kg

Additional information

• Medical device class: IIa
• Warranty: 2 years
• Manufacturer: Ataner GmbH

Model / specifications

• Model: Recovery 12
• Number of chambers: 12 (sequential, distal → proximal)
• Pressure range: 15–95 mmHg
• Adjustable therapy duration: 15–80 minutes
• Deflation time: 15–120 seconds
• Power supply: AC 230 V / 50–60 Hz (adapter DC 24 V / 1.5 A)
• Dimensions: 207 × 207 × 182 mm
• Weight: 2.1 kg
• Medical device class: IIa
• Warranty: 2 years
