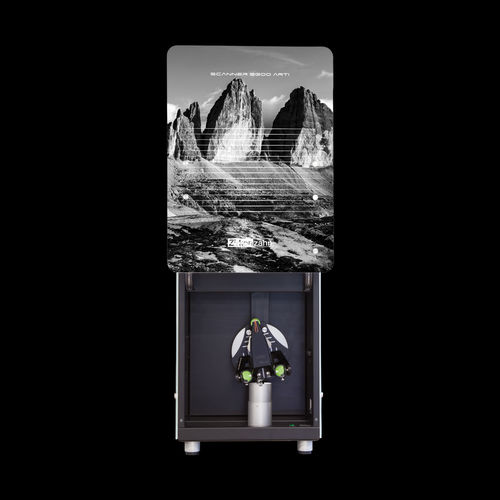

dental laboratory CAD/CAM scanner / benchtop / 2-axis
S600 ARTI

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product
dental laboratory CAD/CAM scanner / benchtop / 2-axis dental laboratory CAD/CAM scanner / benchtop / 2-axis - S600 ARTI
{{requestButtons}}

Characteristics

  • Applications:

    for dental laboratories

  • Configuration:

    benchtop

  • Other characteristics:

    2-axis

Description

CHARACTERISTICS

Fully automated optical structured-light scanner with two high-resolution high-speed cameras, a third camera can be retrofitted (optional)
Even faster scanning thanks to further developed software technology (starting from Zirkonzahn.Scan 5051)
High scanning precision: ≤ 10 μm
Particularly large scanning area (115 x 78; format 16:9) for articulator scans and the capture of the entire model in a single scanning process; every kind of lab articulator can be measured and stored in the software
Scannable objects: no limitations, i.a. individual dies, arch segments, full arch models, bite records, opposing dentition (mush bites, entire jaw), wax-ups, veneers, abutments, occlusal registrations, bite rims, etc.
Intelligent data import/export function with open interface: STL-, OFF-, OBJ-, PLY- formats
Double-Scan function
Integrated colour scan option – useful for example when creating partial dentures
Scan & Match function: scanning an element from various perspectives and subsequently matching the scans
Extensive matching functions, for example group matching, marker matching, negative matching
Stable high-precision gears
Scanning area is protected from unfavourable lighting conditions and dust
Universal capturing of models with intelligent model acquisition concepts and fast clamping devices (Easy-Fix-System)
Easy positioning of the scan model with the help of a laser point
Patient-specific information captured with the PlaneSystem® (Udo Plaster, MDT) and with the Plane Analyser, can be 100 % digitised and implemented into the Zirkonzahn.Software
