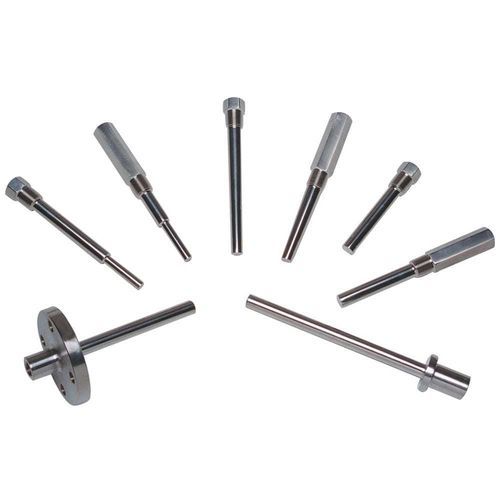

Medical sleeve ZPT-SPT-006

hygiene

Overview
ZorayPT's Temperature Sensor Protector is a stainless-steel shielding component designed to protect temperature sensors (RTDs, thermocouples) from thermal extremes, mechanical damage and corrosive agents in industrial, medical and environmental monitoring applications. Available in medical-grade AISI 316 / 316L (304 available) with inner diameters from 0.15 mm to 3.4 mm and fully customizable lengths. Ultra-thin wall options (standard 0.1 mm, customizable down to 0.05 mm) provide rapid thermal response while maintaining structural support. Mirror-polished inner and outer surfaces reduce thermal lag, help prevent contaminant buildup and ensure smooth sensor insertion and removal. Multiple tip and end-processing options (flat tip, round tip, chamfering) and mechanical forming (slotting, bending, flaring, necking) are available to match probe geometries and application requirements.

Key Features

• Inner diameter: 0.15 mm–3.4 mm
• Wall thickness: 0.05 mm–0.1 mm (customizable)
• Fully customizable length
• Materials: AISI 316 / 316L (medical-grade), 304 available
• Processing options: slotting, bending, flaring, tip shaping, necking, chamfering
• Ultra-thin-wall design for fast thermal response
• Mirror-polished inner and outer surfaces
• Perforated or solid-wall variants available

Applications

• Industrial temperature monitoring: protection for probes in high-temperature processes
• Food and pharmaceutical production: hygienic sensor shielding to reduce contamination risk
• HVAC and environmental systems: accurate thermal measurement and long-term reliability

Performance and Manufacturing Notes
Variants include solid-wall protectors for full isolation and perforated designs for faster thermal response. ZorayPT manufactures these components in-house using tube drawing, CNC machining, laser processing and polishing, enabling rapid prototyping and scalable production. Typical finishing and packaging options include mirror polishing and customizable packing (individual blister or bulk).

Technical Specifications

• Model: ZPT-SPT-006
• Inner diameter range: 0.15 mm to 3.4 mm
• Wall thickness: 0.05 mm–0.1 mm (standard 0.1 mm, thinner available)
• Length: fully customizable
• Material options: AISI 316 / 316L (medical-grade), 304 available
• Available processes: tube drawing, CNC machining, laser processing, slotting, bending, flaring, necking, chamfering, tip shaping (flat or round)
• Finish: mirror-polished inner and outer surfaces
• Variants: perforated (faster response) or solid-wall (isolation)
