Laser cirúrgico Gbox

díodode mesa

Présentation

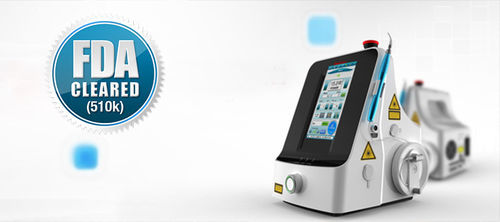

The new Gbox portable surgery diode laser system is a compact, portable medical diode laser designed for multiple clinical specialties. Small-size body case with maximum power up to 30W. Available wavelength options: 450nm, 532nm, 810nm, 980nm, 1064nm, 1470nm and 1940nm. Operates in continuous and pulsed modes and supports contact or non-contact handpieces.

Applications

• Dentistry
• Endovenous laser treatment (EVLT)
• ENT (Ear, Nose & Throat)
• PLDD
• Liposuction / Lipolysis
• DEEP Tissue Therapy
• Veterinary applications

Accessoires et mainpieces

• Flexible fiber and 2 kinds of fiber holders
• Handpieces in various shapes and lengths (including ENT handpieces: 7 pieces for different applications)
• Micro-endoscope options
• PM3 therapy handpiece for pain relief, accelerated healing and decreased inflammation
• Lipolysis handpiece with 5 lengths of cannula, re-sterilizable up to ~40 times each

Gbox Features

• User-friendly interface: advanced software with presetting protocols; protocols can be renamed, parameters changed and saved by the operator
• Output power calibration at the end of fibers; built-in power meter accessible via software
• Adjustable aiming beam (pilot light), background light and sound
• 20 KHz top-pulsation for quick and tissue-protecting performance
• High quality and reliability with 8-inch touch screen display
• Highly integrated and modular design for easier, lower-cost maintenance
• Full standard accessories provided for immediate clinical use
• Portable metal carry case with coded lock; compact dimensions and low weight for mobility
• Distributor support including after-sale service and training (as stated by manufacturer)

Caractéristiques / spécifications techniques

• Marque: GIGAAMEDICAL (GIGAA)
• Dénomination commerciale: Gbox
• Type: Portable surgery diode laser system
• Puissance maximale (peak output): up to 30 W
• Longueurs d'onde disponibles: 450 nm, 532 nm, 810 nm, 980 nm, 1064 nm, 1470 nm, 1940 nm
• Modes de fonctionnement: Continuous and Pulsed
• Pulsation maximale signalée: 20 KHz top-pulsation
• Handpiece: Contact and non-contact handpieces supported
• Fibres: Flexible fiber options; typical fiber length 3 meters (noted for ~200 cases if sterilized by user)
• Affichage: 8" touch screen
• Dimensions (approx.): 245 mm (L) x 215 mm (W) x 315 mm (H)
• Poids: approx. 5 kg
• Accessoires fournis: full standard clinical accessories (fiber holders, handpieces, cannulae, etc.)
• Handpiece lipolysis: cannulae re-sterilizable up to ~40 cycles each
• Mesure de puissance: built-in power meter in software for output calibration
• Certifications mentionnées: FDA approval indicated by manufacturer
