Laser para lesões vasculares LASEVIA

para rejuvenescimento vulvovaginalpara lipólisepara bioestimulação em ortopedia

Overview

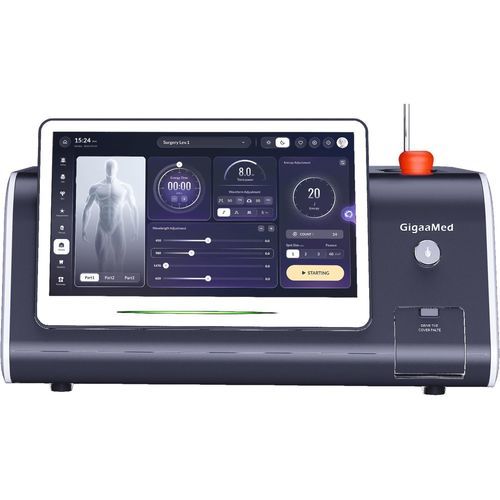

LASEVIA unites 1940 / 1470 / 980 / 635 nm semiconductor sources in one console — up to 30 W+ across eight clinical disciplines, from endolifting and lipolysis to EVLT and proctology. Portable console (15 kg) with an 11.6-inch Android smart touchscreen and Class 4 safety hardware.

Wavelength architecture & configurations
Four (or five) available wavelengths in the platform; two factory configurations are shown:

Configuration A
1940 nm · 10 W
1470 nm · 15 W
980 nm · 20 W
635 nm · 500 mW
Fiber core: 200 µm · Indications: Endolifting · Lipolysis · Vascular

Configuration B
1470 nm · 15 W
980 nm · 30 W
450 nm · 8 W
635 nm · 2 W
Fiber cores: 200 / 400 µm · Indications: Therapy · Proctology · LVR

Emission & timing

• Emission modes: CW · single pulse · repeat pulse
• Pulse width: 25 µs – 10 s
• Repetition rate: 0.05 Hz – 50 kHz
• Fiber interface: SMA905 universal port (accepts contact fibers 200 / 400 / 600 / 1000 µm and non-contact tips)

Clinical specialties (eight)

• Endolifting — 1940 nm fractional fiber remodels superficial and deep layers for non-surgical lifting (face, neck, body)
• Lipolysis — ring-light fiber emulsifies adipose via micro-cannulas for mini-invasive body contouring (1470 / 980 nm)
• Spider Vein & Vascular — transdermal and endovenous coagulation (980 / 1470 / 635 nm)
• Therapy · HILT Class IV — deep-tissue photobiomodulation for pain, inflammation and tissue repair (multiple IR wavelengths)
• LVR (vaginal rejuvenation) — non-ablative 635 nm intimate-health protocol
• Proctology — fiber-delivered coagulation for haemorrhoids and fistulas (980 / 1470 nm)
• EVLT — endovenous laser ablation of varicose veins (1470 / 1940 nm preferred)
• ENT — 450 nm blue for minimally invasive soft-tissue surgery

Delivery, handpieces & fibers
The platform ships with a comprehensive delivery ecosystem: Basic and Advanced handpiece sets, SUPERSCAN fractional tips, LVR handpieces (including disposable sets), PM5 therapy heads, and fibers (high-power, bare, polyimide, radial, hemorrhoid). Accessories include laser safety goggles, foot switch, fiber cutter, stripper and connector cleaner.

Device features

• 11.6" Android smart touchscreen with touch presets, real-time energy readouts and one-tap protocol recall
• Emergency laser stop (mushroom switch) and mechanical safety shutter
• Portable 15 kg console with single-handle carry frame
• Universal SMA905 delivery port for rapid handpiece/fiber swaps

Regulatory & quality
CE · MDSAP · ISO 13485 · FDA-cleared therapeutic-laser lineage. Intended for professional/clinical use.

Caractéristiques / spécifications techniques

• Laser type: Multi-wavelength semiconductor (diode) laser platform
• Wavelengths: 450 / 635 / 980 / 1470 / 1940 nm — configuration dependent
• Maximum output: Up to 30 W+
• Configuration A: 1940 nm 10 W · 1470 nm 15 W · 980 nm 20 W · 635 nm 500 mW · fiber 200 µm
• Configuration B: 1470 nm 15 W · 980 nm 30 W · 450 nm 8 W · 635 nm 2 W · fiber 200 / 400 µm
• Emission modes: CW · single pulse · repeat pulse
• Pulse width: 25 µs – 10 s
• Repetition rate: 0.05 Hz – 50 kHz
• Delivery system: SMA905 fiber interface · contact 200 / 400 / 600 / 1000 µm · non-contact tips
• Interface: 11.6" Android smart touchscreen
• Safety: Emergency laser stop · mechanical safety shutter · Class 4
• Power supply: 100 – 240 V, 50 – 60 Hz, 350 VA
• Weight: 15 kg (portable console)
• Certification: CE · MDSAP · ISO 13485 · FDA-cleared therapeutic laser
