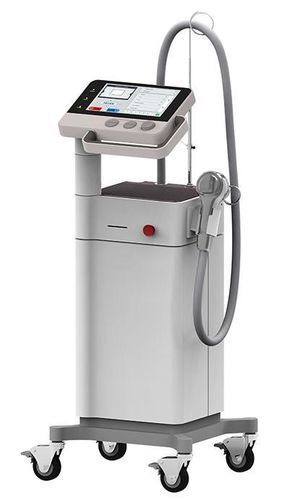

美容医療レーザー BeautyScan™

Er:Glass台車上

Overview
The BeautyScan™ is the high-end laser system to perform fractional Non-ablative Skin Resurfacing. It utilizes state-of-the-art technology and a 1550nm fiber Er-Glass laser module to achieve optimal results in non-invasive treatment of scars, stretch marks and wrinkles. The BeautyScan™ transmits 1550nm laser energy into the skin to produce thousands of tiny microthermal zones, creating small microscopic columns of thermal injury that stimulate the body’s wound healing response, promote new collagen production and refresh the epidermis.

Clinical Applications

• Acne Scars
• Stretch marks
• Other scars (burn, surgical and other scars)
• Wrinkles removal
• Aging wrinkles
• Rough skin
• Coarse pore

Features

• Non-ablative, painless and bloodless solution
• Targeted treatment without side effects
• Short treatment times and quick recovery time
• Comfort and excellent satisfaction rate reported by patients

Desktop optional

• Download brochure View More.

Key Points

• Stable: adopts 1550nm fiber Er-Glass laser module technology to provide stable wavelength, uniform spot size and accurate performance during treatment.
• Excellent ease of use: user-friendly software and intelligent design assist users to choose optimal treatment settings.
• Flexibility and Versatility: diversified scanning modes and spot sizes meet different treatment needs.
• Cost Effective: no costly consumables, no costly maintenance.

Caractéristiques / spécifications techniques

• Laser type: Fiber Er-Glass laser
• Wavelength: 1550nm ±1nm
• Output power: 1-10W
• Operation mode: Fractional
• Figure filling: 9% – 100%
• Treatment Surface Area: 1mm - 16mm Adjust
• Spot Size: 100um
• Pulse width: Ton: 1ms-50ms Toff: 1ms-5000ms
• Pulse repetition rate: 0Hz – 500Hz
• Application systems: Scanner
• Transmission system: fibers and collimator
• Aiming beam: Diode laser of 635nm, power <5mW, adjustable brightness
• Operation interface: 10.2' Color LCD touch screen
• Laser Class: 4
• Safety classification: ClassⅠ Type B
• Cooling: Air
• Dimensions: 400(W) * 400(L) * 950(H) mm
• Weight: 35kg
• Waterproof level: IPX1
• Footswitch Waterproof level: IPX8
• Safety Compliance: IEC
