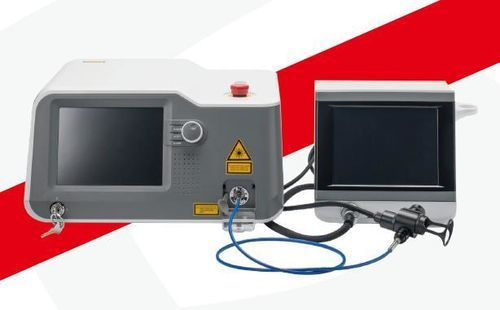

血管病変用レーザー VELASII-8G

色素性病変用瘢痕治療用三ホウ酸リチウム

INTRODUCTION
Use high power semiconductor at 808nm to “pump” in an optical sense a crystal that produces light of a wavelength of 1064 nm. Such light is in the turn casted upon a duplicating crystal (LBO triborate lithium) to “halve” the wavelength of 1064 nm and obtain green light of 532 nm. Such a novel system of splitting the value of the wavelength allows the operator to control the exit of green light using very short pulses.

Powerful and effective

• 3w / 4w / 5w / 8w peak power options
• Very short, intense pulses
• Effective treatments with protection of the epidermis
• Very stable and reliable with long life-time

Transportable and economic

• Easy-to-use design, intuitive menu
• Compact device, stable technology
• Transportation case for device and accessories
• Plug & play technology: no technician needed
• Low operating costs

Applications
Vascular Lesions

• Spider Veins
• Telangiectasia
• Neovascularization
• Rosacea
• Venous Lake
• PWS
• Senile, Stellate and Cherry Angiomas

Pigmented Lesions

• Lentigines
• Dermatosis Papulosis Nigra
• Freckles
• Hyperkeratotic Lesions
• Civatte Poikiloderma
• Red Stretch Marks

Cutaneous Lesions

• Scars
• Verrucas
• Keratoses
• Inflammatory Acne

Caractéristiques / spécifications techniques

• Pump semiconductor wavelength: 808 nm
• Fundamental crystal output: 1064 nm
• Frequency doubling crystal: LBO (lithium triborate) to obtain 532 nm (green) output
• Output (green): 532 nm
• Peak power options: 3 W, 4 W, 5 W, 8 W
• Pulse type: very short, intense pulses
• Design: compact, transportable; includes transportation case for device and accessories
• User interface: easy-to-use design with intuitive menu; plug & play
• Operational benefits: low operating costs; stable and reliable with long lifetime
