温度データロガー DST CTD

導電性圧力深度

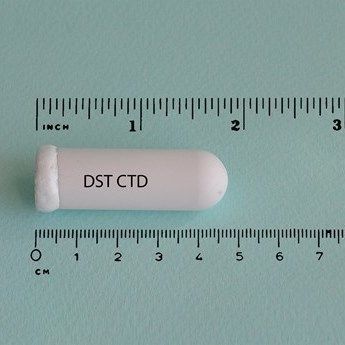

Product Overview:The DST CTD Data Storage Tag is the smallest CTD (Conductivity, Temperature, Depth) data logger on the market, designed for long-term tagging studies of fish and marine animals. It measures and records salinity, temperature, and depth, with a compact size of only 50 mm in length and 15 mm in diameter. The device is user-programmable, allowing flexible sampling intervals, and displays collected data in both graphical and tabular formats with time stamps for each measurement. Smallest CTD data storage tag available Long battery life – up to 5 years Depth sensors suitable for shallow to deep ocean (150m, 500m, 1200m, 2400m) Tag holder kit for external fish tagging User-defined text can be added to the housing for recapture purposes Applications:Designed as a fish archival tag for migration studies, the DST CTD enables scientists to gather valuable information on migration routes and behavioral patterns over extended periods. The tag is externally attached to the animal due to its salinity sensor, which consists of two conductivity cells. For mooring or subsea gear applications, a different model is recommended. Salinity and Conductivity:The DST CTD can capture conductivity from 2 to 68 mS/cm, with a low range option of 0.1–6 mS/cm, ideal for brackish water measurements. Depth Measurement:The tag can be calibrated for depths up to 2,400 meters (tolerance up to 2,500 meters), with options for shallower ranges. Attachment and Recapture:A tag holder kit is available for easier and safer external attachment. Custom text can be added to the housing for recapture and data return purposes. Ease of Use:The logger is supported by SeaStar software and a Communication Box (required for first order). Programming is done via USB connection to a PC, allowing the user to set start time, date, and sampling intervals. The logger supports single or multiple interval sampling (up to 7 different intervals). Memory and battery life calculations are automated in the software. After recapture, data is uploaded to the software for analysis and export. Battery and Memory:The tag features low energy consumption circuitry, enabling several years of battery life depending on usage. Memory capacity is 87,217 measurements per sensor, with non-volatile EEPROM memory and 25 years of data retention. Accessories:Available accessories include the Communication Box, SeaStar software, Plate Holder Kit, Capsule Holder Kit, and Floating Device for DST. These facilitate attachment, data retrieval, and operation in various environments. Technical Specifications: Sensors: Conductivity (salinity), temperature, pressure Size: 15 mm x 50 mm (Diameter x Length) Maximum Diameter: 18 mm at closure end Housing Material: Alumina (Ceramic) Weight: 21g in air / 13g in water Data Resolution: 12 bits Conductivity Ranges: 2-68 mS/cm (wide), 0.1-6 mS/cm (low) Conductivity Resolution: 0.03 mS/cm (2-68 mS/cm), 0.003 mS/cm (0.1-6 mS/cm) Conductivity Accuracy: ±1.5 mS/cm (2-68 mS/cm), ±0.15 mS/cm (0.1-6 mS/cm) Salinity Resolution: 0.02 PSU (2-68 mS/cm), 0.002 PSU (0.1-6 mS/cm) Salinity Accuracy: ±1 PSU (2-68 mS/cm), ±0.1 PSU (0.1-6 mS/cm) Temperature Range: -1°C to +40°C (30°F to 104°F) Temperature Resolution: 0.032°C (0.058°F) Temperature Accuracy: ±0.1°C (0.18°F) Temperature Response Time: 20 sec (63% time constant) Standard Depth Ranges: 150m, 500m, 1200m, 2400m Depth Resolution: 0.03% of selected range Depth Accuracy: ±1% of selected range Depth Response Time: Immediate Memory Type: Non-volatile EEPROM Memory Capacity: 87,217 measurements per sensor Memory Management: Custom programming Measurement Interval: User specified (seconds, minutes, hours) Minimum Measurement Interval: 1 second Multiple Intervals Option: Up to 7 different intervals Data Retention: 25 years Clock: Real time clock, accuracy ±1 min/month Communications: Communication Box, wireless transmission when DST sits in the box, USB connection to PC Attachment Hole: 0.9 mm diameter Battery Life: 5 years (for 10 min sampling interval) Replaceable Battery: No Warranty: 12 months
