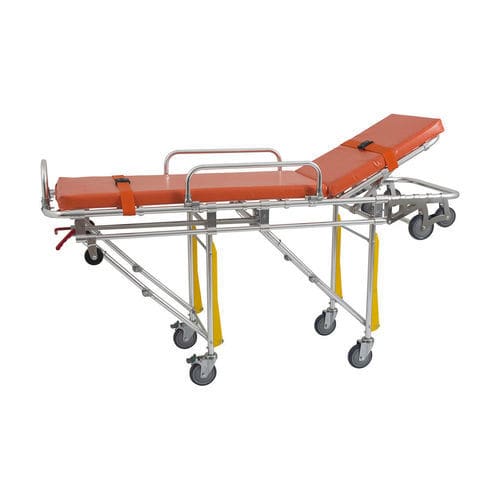

救急車用ストレッチャー YHR-A1

手動式折りたたみ式高さ調節可能な

Overview - Main material is high-strength aluminum alloy. - The backrest angle is adjustable. - The mattress uses abrasion-resistant mesh fabric, 6cm thick, disposable welded, flame-retardant and waterproof. - Equipped with adjustable aluminum alloy guardrails and two seat belts. - Equipped with an adjustable two-stage IV stand, maximum adjustable length is 75cm. - There are two large and small wheels on the upper part of the loading section to accommodate different ambulance heights. Loading heights: 67cm, 65cm, 64cm. - Wheel size: φ125mm. Technical Specifications - Model: YHR-A1 - Features: High/low position, waterproof seamless welded PVC mattress, 2 straps, swing-down side rails, safety lever to control folding legs, two-stage IV stand, vehicle lock device - Material: Durable aluminum alloy - Dimensions: 190×55×(27-93)cm - Backrest Recline: 0-75 degrees - Capacity: Max 160kg (350 lbs) - Net Weight: 37kg - Packing: 195×65×28cm; 1pc/CTN - Gross Weight: 43kg YHR-A1-2 Model - Model: YHR-A1-2 - Features: High/low position, 5cm mattress, 2 straps, two-stage IV stand, vehicle lock device, removable double tabletop, both ends tiltable - Material: Durable aluminum alloy - Dimensions: 193×55×(36-98)cm - Backrest Recline: 0-75 degrees - Capacity: Max 160kg (350 lbs) - Net Weight: 39kg - Packing: 198×65×38cm; 1pc/CTN - Gross Weight: 45kg Technical Features / Specifications - Main material: High-strength aluminum alloy - Backrest: Adjustable angle (0-75°) - Mattress: 6cm thick, abrasion-resistant mesh, flame-retardant, waterproof - Guardrails: Adjustable aluminum alloy - Seat belts: 2 included - IV stand: Two-stage, max length 75cm - Loading heights: 67cm, 65cm, 64cm - Wheel size: φ125mm - Dimensions: 190×55×(27-93)cm (YHR-A1), 193×55×(36-98)cm (YHR-A1-2) - Capacity: Max 160kg (350 lbs) - Net weight: 37kg (YHR-A1), 39kg (YHR-A1-2) - Packing: 195×65×28cm (YHR-A1), 198×65×38cm (YHR-A1-2) - Gross weight: 43kg (YHR-A1), 45kg (YHR-A1-2)
