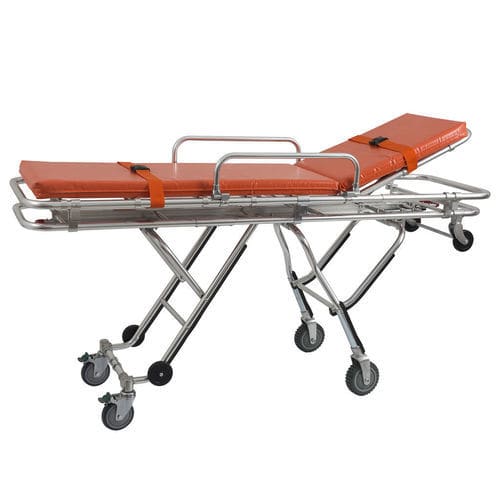

救急車用ストレッチャー YHR-A4

機械式高さ調節可能な折りたたみ式

Overview - Main material is high-strength aluminum alloy, hardened and surface treated. - The mattress is made of wear-resistant mesh fabric, 6cm thick, disposable welded, flame-retardant and waterproof. - Equipped with adjustable aluminum alloy guardrails and two seat belts. - Comes with an adjustable two-stage IV stand. Maximum adjustable length is 75cm. - Smart structure with a mechanical folding leg mechanism, allowing for easy posture changes. Four height adjustments possible. The folding leg mechanism can be operated with handles on both sides, enabling a single medical staff member to push the stretcher into the ambulance. - For model YHR-A4, the upper frame is non-detachable; for model YHR-A5, the upper frame is detachable. - Load height is 64cm. Wheel size: φ125mm. Specifications / Technical Data - Name: Ambulance Stretcher - Model: YHR-A4 - Material: Aluminum Alloy - High Position (L*W*H): 196×55×98cm - Low Position (L*W*H): 196×55×34cm - Backrest: 0-75° - Load Capacity: Max 160kg (350 lbs) - Net Weight: 38.2kg - Packing: 198×62×38cm; 1pc/CTN - Gross Weight: 44kg Features / Technical Specifications - High-strength aluminum alloy construction - Wear-resistant, flame-retardant, waterproof mattress (6cm thick) - Adjustable guardrails and safety belts - Adjustable two-stage IV stand (max 75cm) - Folding leg mechanism, 4 adjustable height levels - Loading height: 64cm - Wheel size: φ125mm - Max load: 160kg (350 lbs) - Net weight: 38.2kg, Gross weight: 44kg - Packing size: 198×62×38cm (1pc/CTN) - Backrest adjustable: 0-75°
