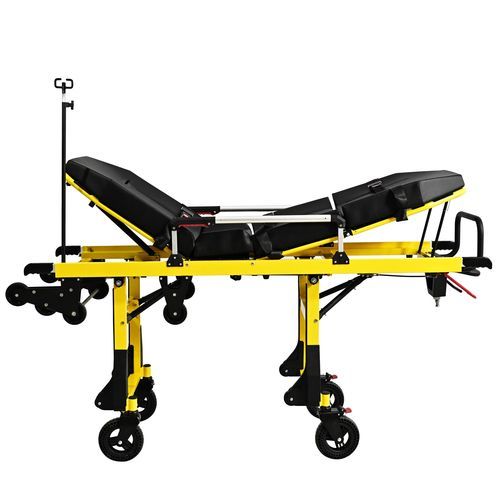

輸送用ストレッチャー YHR-A12

救急用手動式高さ調節可能な

Product Overview - Main material is high-strength aluminum alloy, hardened and surface treated. - The stretcher's overall height is adjustable in ≥3 stages, convenient for CPR operations. - The front leg height is adjustable in 2 stages, the rear leg height in 3 stages. - The backrest angle can be adjusted by air spring, backrest angle: 0–88°; the leg section can be set to 0° or 15° by mechanical support. - Three wheels at the loading/unloading section provide a wide range of boarding heights. - The rails are made of aluminum and plastic; the stretcher comes with two seat belts. - The front universal wheels use an elastic latch and can be locked for straight or omnidirectional movement; rear universal wheels have brakes. - One medical staff member can push the stretcher into the ambulance. - The locking mechanism is operated by a handle. When loading the stretcher into the ambulance, it must be fixed using the device. - Loading height: 580–690mm, wheel size: Φ200mm. - The stretcher mattress is a concave PVC material, 10cm thick. The mattress is high-frequency seamless welded, waterproof, and easy to clean. - Comes with a two-stage IV stand and stretcher fixing device. - Optional accessory: oxygen cylinder support. Specifications - Name: Ambulance Stretcher - Model: YHR-A12 - Features: Overall height adjustable - Four universal wheels, front wheels can be direction-fixed - Height adjustable for CPR use - Three-stage wheel height: 585mm, 640mm, 685mm - Adjustable guardrail structure, height 17.5cm - 2-point seat belt - Three-point simultaneous locking device - Four retractable handles at both ends - Material: High-strength aluminum alloy, surface treated - Mattress: U-shaped waterproof high-quality mattress, 10cm thick - Wheels: φ200mm - High position: 197×57.5×101cm - Low position: 197×57.5×47cm - Backrest angle: 0–90° - Leg angle: 0° or 15° - N.W.: 51.5kg - Load bearing: Max 200kg (440LBS) - Packing: 207x60x47cm; 1 set/CTN - G.W.: 62kg
