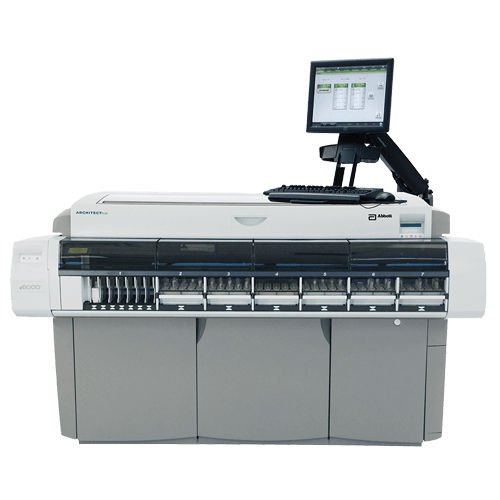

Automatic biochemistry analyzer ARCHITECT c8000

floor-standingwith ISE

With true family commonality and enhanced system and assay dynamics, the ARCHITECT family allows for integration without compromise. Equivalent patient results Identical technology, reagents and assay protocols generate patient results that are equivalent from system to system. Identical software ARCHITECT offers identical software across the entire family of instrumentation to streamline training and enhance ease of use. Universal architect sample carrier A universal sample carrier and common reagent cartridges are utilized across ARCHITECT systems. With the ARCHITECT c8000, gain speed and confidence in your Clinical Chemistry results. Sample Tubes - Height: 72-102 mm Diameter: 9.6-16.1 mm Sample Capacity - 215 Sample Barcode Types - Code 39, Codabar, Interleaved 2 of 5, Code 128 Sample Result Storage - 50,000 Reagent Type - >97% liquid ready-to-use Reagent Onboard Stability - 5-65 days, Average: 38 days Calibration Frequency - 1-60 days, Average: 25 days Sample, Clot and Bubble Detection - Yes Reagent Pressure Monitoring - No System Control Center - 1 SCC, with color touchscreen monitor, keyboard and mouse Onboard Maintenance Records - Yes Online Error Code Help - Yes Host Interface - Bidirectional, serial RS-232 interface, host query option available Electrical Requirements - AC 180-264V, 47-63 Hz, 20 amp Water Requirements - Deionized water 25 liters/hour during normal operation Heat Output* - 3400 BTU/hr, running mode Sample Loading - RSH + Carousel
