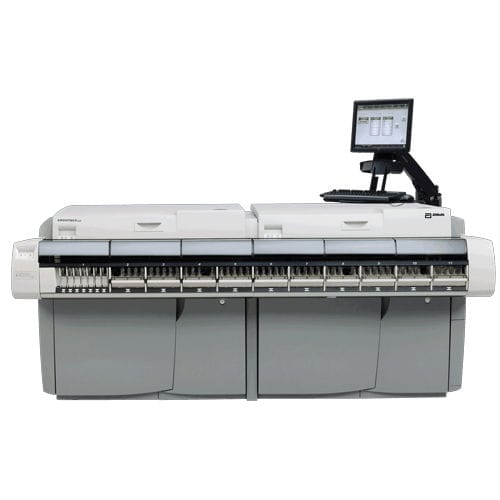

Automatic immunoassay analyzer ARCHITECT i4000SR

for clinical diagnosticcontinuous accessSTAT

With true family commonality and enhanced system and assay dynamics, the ARCHITECT family allows for integration without compromise. Equivalent patient results Identical technology, reagents and assay protocols generate patient results that are equivalent from system to system. Identical software ARCHITECT offers identical software across the entire family of instrumentation to streamline training and enhance ease of use. Universal architect sample carrier A universal sample carrier and common reagent cartridges are utilized across ARCHITECT systems. The ARCHITECT i4000SR is a multi-module system that provides enhanced productivity for laboratories with high-volume immunoassay demands. System specifications Sample Tubes - Height: 72-102 mm Diameter: 9.6-16.1 mm Sample Cup - Yes (50 µl dead volume) Sample Capacity - 285 Sample Barcode Types - Code 39, Codabar, Interleaved 2 of 5, Code 128 Automatic Dilution - Yes Sample Probe Carryover - ≤0.1 parts per million Reagent Capacity - 50 refrigerated positions Reagent Type - 100% liquid ready-to-use Reagent Onboard Stability - 14-30 days Calibration Frequency - Calibrate with new lot number, if controls are out of range or if specified otherwise within the package insert Sample, Clot and Bubble Detection - Yes Reagent Pressure Monitoring - Yes Sample Interference Measurement - No System Control Center - 1 SCC, with color touchscreen monitor, keyboard and mouse Onboard Maintenance Records - Yes Electrical Requirements - AC 180–264 V/47–63 Hz Water Requirements - Purified water to dilute buffer concentrate Heat Output* - 4,280 BTU/hr, Running mode Sample Loading - RSH Online Error Code Help - Yes
