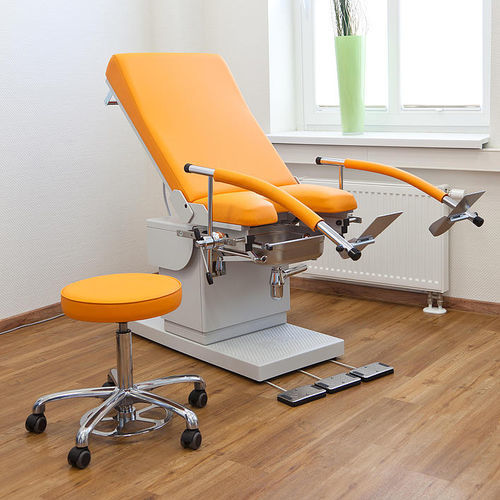

Urological examination chair AGA-URO-MAT

pneumaticelectricfoot-operated

Overview
The urology examination chairs are hard-wearing, easy to use, and characterized by their functionality. Thanks to the (electric) adjustment options and the specialized accessories and equipment components, they offer the best possible working basis for every user.

Models (article numbers)

• AGA-URO-MAT, Article No.: UUS-3060/EEE
• AGA-URO-LIFT, Article No.: UUS-3060/EE
• AGA-URO-MED, Article No.: UUS-3058/E

Design and adjustments
The chairs are each equipped with an electric motor for adjusting the seat section. AGA-URO-MED has a fixed height; AGA-URO-MAT and AGA-URO-LIFT are factory-equipped with electric height adjustment (650 - 850 mm). On the AGA-URO-MAT the back section adjustment is also electric. Working heights can be adjusted continuously up to 1,160 / 1,175 mm (measured at the front edge of the seat) using the full motorized adjustment range. The ergonomic upholstery of the backrest and seat ensures a very high level of comfort. A foam wedge is integrated in the backrest to eliminate the need for an additional bolster. A cutout is incorporated in the seat section.

Features

• AGA-URO-MAT and AGA-URO-LIFT: electric height adjustment 650 - 850 mm with precision double square guides to avoid lateral offset.
• AGA-URO-MED: seat cushions reachable via fold-away foot step mounted on the floor frame; tread made of polyethylene with non-slip surface.
• Trendelenburg position up to 30° achievable using electric seat elevation and adjustable back section.
• Back section adjustment up to +54°:
  • AGA-URO-MAT (UUS-3060/EEE) by electric motor
  • AGA-URO-LIFT (UUS-3060/EE) by gas pressure spring
  • AGA-URO-MED (UUS-3058/E) by gas pressure spring
• Maintenance-free, extremely quiet electric drives controlled by foot switch (alternative hand switch at no extra charge); adjustment systems equipped with key locks. Motor connection values (each): 230V, 50/60 Hz, 3.7A, 850W, IPX4, v = 11 mm/s, 10,000 N.
• Floor frame with levelling feet ensures secure stand.
• Impact- and scratch-resistant covers on column and base frame; easy to clean and disinfect.
• Different upholstery thicknesses: seat 85 mm, backrest 85 - 135 mm, achieved with coordinated foam densities for high seating comfort.
• Cutout in the seat cushion.
• Standard rails: pair of stainless steel rails (25 x 10 mm, length 350 mm) attached to side of seat to accommodate leg support systems.
• Gyroscopic sink (330 x 300 x 100 mm W x D x H) moves parallel to seat elevation; supplied with bottle siphon, drain and inlet hoses, tap with aerator and backflow preventer (in accordance with DIN EN 1717) and flushing nozzle.
• Earthed socket integrated into back of column (for connecting e.g. a colposcope).

Technical details
Article number: AGA-URO-MAT: UUS-3060/EEE | AGA-URO-LIFT: UUS-3060/EE | AGA-URO-MED: UUS-3058/E
Frame: Lacquered (all models)
Length (back/seat section): 1,150 mm | Back/seat: 800 / 350 mm
Width: 580 mm (640 mm with standard rails)
Height adjustment (AGA-URO-MAT / AGA-URO-LIFT): 650 - 850 mm (electric motor) | AGA-URO-MED: fixed (-) / 865 mm seat height
Upholstery segments: 2 sections
Upholstery thickness seat section: 85 mm
Upholstery thickness back section: 85 - 135 mm
Seat section adjustment: +30° (electric motor)
Backrest adjustment: 0° / +54° (AGA-URO-MAT electric; AGA-URO-LIFT and AGA-URO-MED gas pressure spring)
Trendelenburg adjustment: 30°
Foot step (AGA-URO-MED): 490 x 320 x 250 mm (W x D x H)
Load capacity: 200 kg

Standard version includes

• Pair of standard rails at side of seat
• Supports for colposcope holder (right / left)
• Earthed socket on back of column
• Cutout in seat cushion
• Parallel gyroscopic sink
• Paper roll holder screwed to back section
• Floor frame with levelling feet
• Foot switch(es)
• Fold-away footrest (only on AGA-URO-MED)

Caractéristiques / spécifications techniques

• Article numbers: UUS-3060/EEE, UUS-3060/EE, UUS-3058/E
• Electric height adjustment (where applicable): 650 - 850 mm
• Working height range up to: 1,160 / 1,175 mm (front edge of seat)
• Backrest adjustment up to +54°; seat elevation +30°
• Upholstery thickness: seat 85 mm; backrest 85 - 135 mm
• Load capacity: 200 kg
• Motor specs (each): 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, 11 mm/s, 10,000 N
• Gyroscopic sink dimensions: 330 x 300 x 100 mm (W x D x H)
