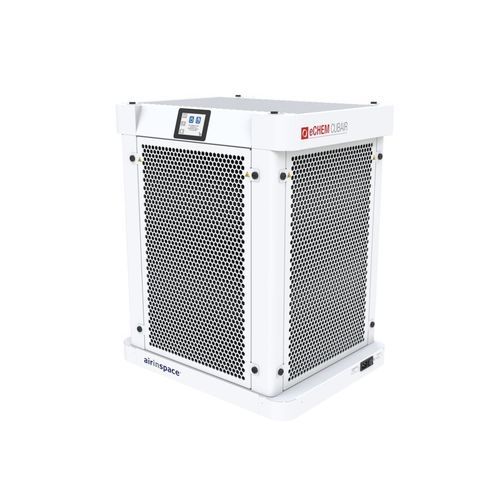

Compact air purifier eCHEM Cubair

mobileactivated carbonwith touchscreen

Overview
Compact universal chemical retention and deoxidizer unit designed for rapid removal of oxidising biocide residues (e.g. hydrogen peroxide, peracetic acid) from air in medical and laboratory environments. Mobile unit to enable faster room turnaround after automated airborne surface disinfection (ASD) and to protect staff from disinfection emissions.

Applications

• Retention and removal of hydrogen sulfide (H2S), mercaptans and ammonia (e.g. volatile sulfur compounds and odors).
• Rapid elimination of biocides after automated airborne surface disinfection (ASD).
• Endoscope disinfection rooms.
• In vitro fertilisation (IVF) laboratories.
• Anatomopathology laboratories.
• Mitigation of exposure to solvents and volatile chemical emissions.

Key benefits

• Targeted neutralization of oxidising products such as hydrogen peroxide and peracetic acid using deoxidizing agents and activated carbon modules.
• Rapid removal of residual biocide from the air after ASD operations to allow quicker room availability.
• Protection of staff by removing emissions generated during disinfection and decontamination procedures.

Features

• Compact, mobile chemical deoxidizer unit engineered for chemical air decontamination in healthcare and laboratory settings.
• Touch screen configuration for intuitive control and process monitoring.
• Quick installation and limited footprint for easy integration into existing facilities.

Studies and publications (selected titles)

• Evaluation of the microbiological quality of biocleaning in haematology intensive care units.
• Evaluation of surface biocleaning effectiveness when using an airborne disinfection device in haematology intensive care units.
• Manual biocleaning versus airborne disinfection in haematology.

Technical specifications

• Volumetric flow rate: Up to 2000 m3/h.
• Dimensions: H 70 cm × L 59 cm × D 47 cm.
• Function: Chemical decontamination / deoxidizing of oxidising biocides (e.g. hydrogen peroxide, peracetic acid) using deoxidizing agents and activated carbon modules.
• Typical uses: ASD post-treatment biocide removal, endoscope disinfection rooms, laboratories (IVF, anatomopathology), solvent exposure mitigation.
• Control: Touch screen interface for configuration and monitoring.
