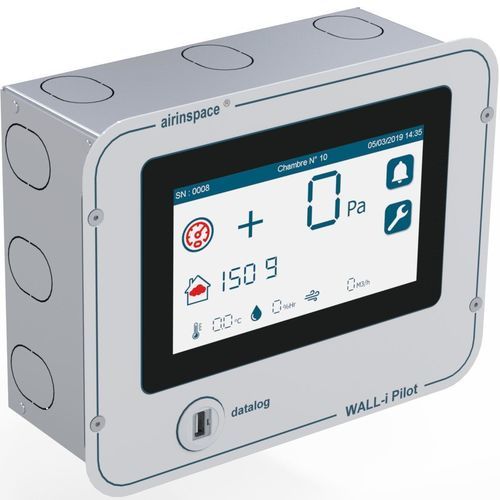

Hospital room pressure monitor Wall-i Pilot

Overview
WALL-i Pilot is a pressure room monitor that takes control of air treatment units to achieve a configured positive or negative pressure in a BIOCAIR® room or laboratory. When connected to PLASMAIR® or HEPA air decontamination units, WALL-i Pilot directly controls the mobile air handling unit and automatically adjusts its flow rate to reach the pressure setpoint. It also provides continuous monitoring of room temperature and relative humidity. Optional particle concentration measurement (ISO Class) is available.

Applications

• Protected environments and high-risk wards in hospitals
• Laboratories

Key functions and features

• Real-time differential pressure monitoring for BIOCAIR® isolation units
• Automatic flow-rate adjustment to achieve and maintain positive or negative pressure setpoints
• Room temperature and relative humidity monitoring
• Optional particle concentration monitoring (ISO Class)
• Intuitive touchscreen for easy programming
• Data retrieval: ModBUS DB9 connection, optional connection to facility management (BMS/GTC), USB ports for DataLog and firmware updates
• RJ45 connector for connection of the mobile air handling unit
• Alarm notifications for pressure or flow deviations
• Enables management of PLASMAIR®/HEPA air decontamination units to reach target room pressures and improve data traceability

Connectivity and data retrieval

• ModBUS connection: ModBUS DB9 Series
• Optional connection to building management systems (BMS/GTC)
• RJ45 connector for the mobile air handling unit
• Two USB ports for DataLog retrieval and firmware updates

Standards and certifications
Designed and manufactured in accordance with the manufacturer's quality commitments (for example ISO 9001 where applicable).

Associated products and accessories

• HEPA Guardian — HEPA 14 mechanical filtration air treatment unit
• HEPA Sentinel — HEPA 14 filtration air treatment unit
• PLASMAIR® Guardian — mobile air decontamination unit with HEPA MD® technology
• PLASMAIR® Sentinel — mobile air decontamination unit with HEPA MD® technology

Technical characteristics / specifications

• Relative humidity: 0% to 90% RH (unregulated)
• Operating temperature: 0°C to +35°C (unregulated)
• Dimensions: H 23 cm x W 27.3 cm x D 7.8 cm
• Differential pressure measurement range: +/-30 Pa maximum
• ModBUS connection: ModBUS DB9 Series
• Mobile air handling unit connection: RJ45 connector
• USB: 2 connectors for DataLog retrieval and firmware update
• Optional particle concentration (ISO Class) measurement
• Designed to directly control PLASMAIR® or HEPA air decontamination units and the BIOCAIR® environment
