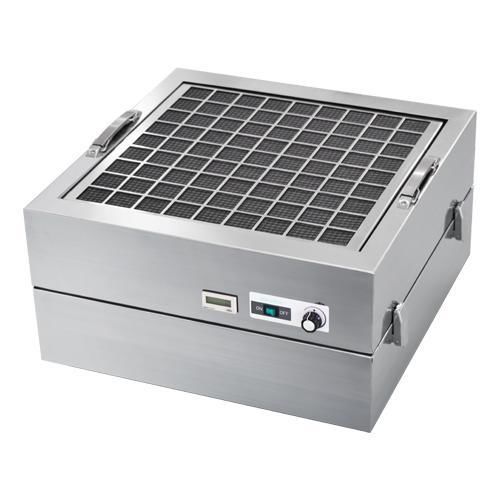

Air filter unit CHEMI-MAC series

for cleanroomsfor the pharmaceutical industrylaboratory

Product overview
Fan-equipped PTFE ULPA filter unit for combined removal of particulate and gaseous contaminants. The main PTFE ULPA filter captures 0.1 μm particles (silica) at ≥99.9995%. A selectable chemical ion-exchange fiber filter enables removal of acidic, alkaline, basic and organic gases. Models: CHEMI-MAC-32 / CHEMI-MAC-51 / CHEMI-MAC-101.

Key features

• Boron-free PTFE ULPA main filter paired with a chemical filter
• Chemical filter selectable for acidic, alkaline, basic and organic gases
• Stepless speed controller for adjustable air flow
• Operating time display via time counter
• RoHS-compliant

Specifications
Model: CHEMI-MAC-32 / CHEMI-MAC-51 / CHEMI-MAC-101
Collection efficiency: 0.1 μm particles (silica) ≥99.9995%
Filter elements: Main filter: PTFE filter (ULPA), Chemical filter: ion-exchange fiber filter
Rated flow (m³/min): approx. 3 / approx. 5 / approx. 10
Outlet velocity (m/s): approx. 0.49 / approx. 0.47 / approx. 0.51
Power supply: AC100V 1Φ 50/60Hz
Power consumption (W): 30/37 / 44/46 / 102/119
Weight (kg): approx. 15 / approx. 20 / approx. 30
Construction: Stainless steel (SUS304)
Accessories: Body mounting angles ×2, equipment mounting gasket ×1

Applications

• Cleanrooms and controlled environments
• Laboratories and research facilities
• Semiconductor and electronics production support
• Pharmaceutical manufacturing and R&D
• Industrial processes requiring particulate and gas-phase contaminant control
