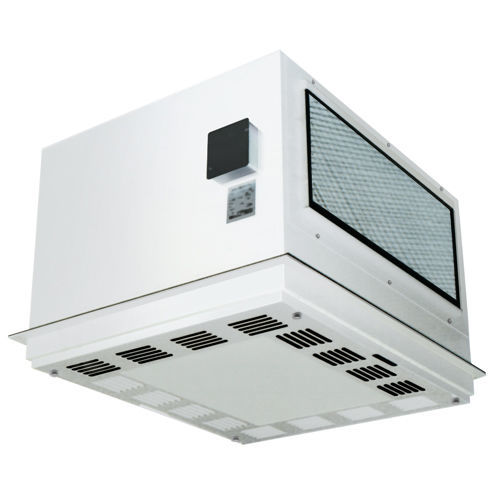

Cleanroom laminar flow module AFU-C-25

ceiling

Application
Duct-connectable fan filter unit designed for cleanrooms and similar controlled environments. A standalone MAC series for single-unit use is also available.

Product overview
Temperature- and humidity-controlled air supplied from the HVAC system is delivered via ductwork to this fan filter unit for final purification and discharge into the room. The unit is space-saving and allows easy duct connection even where ceiling clearance is limited. The discharge face features a diffusing punched plate to distribute purified air over a wide area for rapid room clean-up.

Key features

• Duct-connectable fan filter unit; duct shape can be specified.
• Space-saving design suitable for ceiling suspension.
• Diffusing punched plate on the discharge face provides wide-area airflow.
• HEPA main filter is replaceable from the discharge side.
• Optional ULPA filter specification available for higher cleanliness requirements.

Specifications
Model: AFU-C-25
Filtration efficiency: ≥99.99% at 0.3 μm particles
Filtration elements: Main filter: HEPA filter
Pre-filter: Non-woven fabric filter
Airflow: Approx. 25 m³/min
Power supply: AC200V 3-phase 50/60Hz
Power consumption: Approx. 400 VA
Blower: LNF-2 (250W)
Weight: Approx. 58 kg
Construction: Body: steel plate with baked finish

Technical specifications

• Model: AFU-C-25
• Filtration efficiency: ≥99.99% at 0.3 μm particles
• Main filter: HEPA filter (replaceable from discharge side)
• Pre-filter: Non-woven fabric filter
• Airflow: Approx. 25 m³/min
• Power supply: AC200V 3-phase 50/60Hz
• Power consumption: Approx. 400 VA
• Blower: LNF-2 (250W)
• Weight: Approx. 58 kg
• Construction: Steel plate with baked finish
