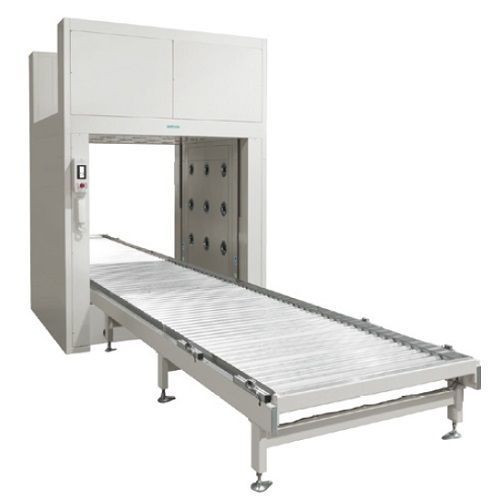

Custom transfer hatch AASB06 series

with HEPA filterdecontaminationwith vertical sliding door

Application
This pass box is designed for integration into cleanroom transfer lines. Items are decontaminated by high‑velocity air‑shower jets to remove particulates, then transferred into the cleanroom via a conveyor. Internal air is cleaned by HEPA filtration to maintain high cleanliness. Units can be configured to match transported item dimensions and shapes.

Key features

• Can operate synchronized with the production/conveyor line.
• Both doors are interlocked to prevent simultaneous opening.
• Custom design available to accommodate item dimensions and shapes.

Specifications
Model: AASB06-□□□C
Particle collection efficiency: ≥99.99% at 0.3 μm
Filter elements: Main filter: HEPA filter; Prefilter: non‑woven fabric filter
Airflow (air‑jet): approx. 8 m³/min
Blow‑out velocity (air‑jet): approx. 25 m/s
Air‑jet nozzles: 8 units
Power supply: AC200V 3Φ 50/60Hz
Structure: Body: painted steel plate; Floor: none (use building floor)

Automatic door
Opening method: vertical single‑slide
Safety device: light curtain
Drive: chain drive
Power supply: AC200V 3Φ 50/60Hz

Technical features

• Model: AASB06-□□□C
• Particle collection efficiency: ≥99.99% at 0.3 μm
• Filter elements: HEPA filter and non‑woven prefilter
• Airflow (air‑jet): approx. 8 m³/min
• Blow‑out velocity (air‑jet): approx. 25 m/s
• Number of air‑jet nozzles: 8
• Power: AC200V 3Φ 50/60Hz (unit and automatic door)
• Structure: painted steel plate body, no floor (use building floor)
• Door type: vertical single‑slide (chain drive)
• Safety device: light curtain
