Healthcare facility isolation room TIB-2618N-1

medicalfor airborne infection isolationfolding

Intended use

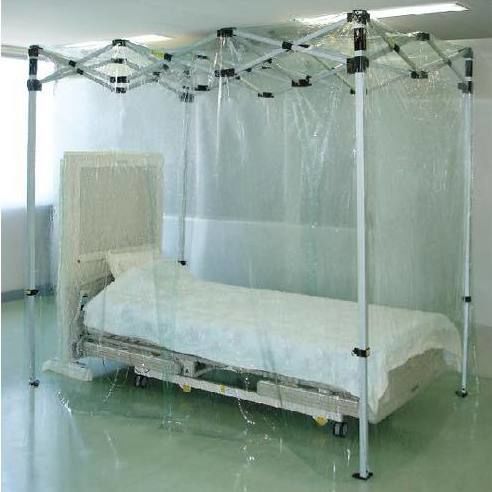

Portable foldable negative-pressure booth for housing infected or potentially infectious patients. Installation is performed by extending the telescopic frame and covering it with a transparent vinyl curtain. Complete the setup by attaching a Clean Partition (C type) as the exhaust unit. The booth can be stored compactly when not in use.

Key features

• Foldable design for easy installation and compact storage.
• Ambient air is purified through a HEPA main filter before exhaust.
• Maintains negative pressure inside the booth to contain patient coughs and droplets.

Specifications
Model: TIB-2618N-1
Particle collection efficiency: 99.99% or higher for 0.3 μm particles
Filter elements: Main filter: HEPA filter
Pre-filter: non-woven net (saran net) filter
Airflow: High mode: approx. 6.5 m³/min; Quiet mode: approx. 3.0 m³/min
Air changes: High mode: approx. 38 times/hour; Quiet mode: approx. 18 times/hour
Power supply: AC100V single-phase 50/60Hz
Power consumption: High mode: approx. 30W (approx. 50VA); Quiet mode: approx. 15W (approx. 22VA)
Weight: approx. 55 kg
Construction: Body: painted steel
Beams and pillars: aluminum or steel
Surroundings and ceiling: transparent vinyl curtain

Additional information
Videos are available showing the airflow interaction between the negative-pressure booth and the Clean Partition and demonstrating assembly procedures for the foldable negative-pressure booth.

Technical specifications

• Model: TIB-2618N-1
• Particle collection efficiency: 99.99% or higher for 0.3 μm particles
• Filter configuration: Main (HEPA), Pre-filter (saran net)
• Airflow: High approx. 6.5 m³/min / Quiet approx. 3.0 m³/min
• Air changes: High approx. 38 times/hour / Quiet approx. 18 times/hour
• Power supply: AC100V single-phase 50/60Hz
• Power consumption: High approx. 30W (approx. 50VA) / Quiet approx. 15W (approx. 22VA)
• Weight: approx. 55 kg
• Construction materials: Body (painted steel), Beams and pillars (aluminum or steel), Surroundings and ceiling (transparent vinyl curtain)
