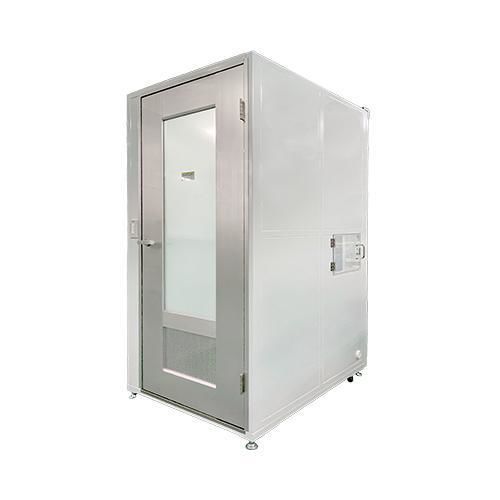

Airborne particle sample collecting system ALF-903

laboratoryfor healthcare facilitieswith decontamination system

Intended use
Booth used for sputum collection during tuberculosis testing and similar procedures. The interior is maintained under negative pressure to prevent aerosol escape. Exhaust air is filtered through a HEPA filter and released as sterile air.

Key product points

• Interior negative pressure prevents aerosols and sputum from flowing out of the booth.
• Exhaust is HEPA-filtered (≥99.99% at 0.3 μm; scan test passed) and discharged as sterile air.
• Sterilization lamp disinfects internal surfaces when the booth is not in use.

Specifications
Model: ALF-903
Filtration efficiency: ≥99.99% at 0.3 μm (scan test passed)
Filter element: HEPA filter
Airflow: High mode approx. 11.5 m³/min; Quiet mode 3.0 m³/min (5-step setting)
Power supply: AC100V 1φ 50/60Hz
Power consumption: approx. 120W (high mode)
Apparent power: approx. 180VA (high mode)
Lighting: LED (equivalent to 20W) ×1
Sterilization lamp: 15W ×1
External dimensions: W972×D1,200×H2,140 mm (receptacle box H2,182 mm)
Internal usable dimensions: W892×D1,100×H1,990 mm
Construction: Body: steel square pipe and steel plate with baked paint finish
Floor: SUS304 hairline finish
Door: aluminum flush door
Clean partition: steel plate with baked paint finish
Options: Table: stainless steel SUS304 hairline finish

Features / Product details

• Model: ALF-903
• Filtration efficiency: ≥99.99% at 0.3 μm (scan test passed)
• Filter element: HEPA filter
• Airflow: High mode approx. 11.5 m³/min; Quiet mode 3.0 m³/min (5-step setting)
• Power supply: AC100V 1φ 50/60Hz
• Power consumption: approx. 120W (high mode)
• Apparent power: approx. 180VA (high mode)
• Lighting: LED (equivalent to 20W) ×1
• Sterilization lamp: 15W ×1 (disinfects internal surfaces when not in use)
• External dimensions: W972×D1,200×H2,140 mm (receptacle box H2,182 mm)
• Internal usable dimensions: W892×D1,100×H1,990 mm
• Construction: Body with steel square pipe and baked paint finish; floor SUS304 hairline; door aluminum flush; clean partition steel plate baked paint finish
• Options: Stainless steel table (SUS304, hairline finish)
